Waterjet Cutting Stainless Steel: Process Guide for 304, 316L, Duplex & More

Stainless steel is the backbone material of pharmaceutical equipment, food processing machinery, chemical reactors, marine hardware, and architectural metalwork. It is also one of the most challenging materials to cut with thermal processes — its high chromium and nickel content generates a tenacious recast layer under laser cutting and significant dross under plasma, both of which require secondary grinding before the part can be used in corrosion-sensitive applications.

Abrasive waterjet cutting eliminates both problems. No heat means no recast layer, no chromium oxidation at the cut edge, and no need for post-cut passivation in most applications. This guide covers the practical parameters and process decisions for waterjet cutting the most common stainless steel grades.

Why Thermal Cutting Causes Problems with Stainless Steel

Stainless steel's corrosion resistance depends on a chromium oxide passive layer that forms naturally on the surface. Thermal cutting disrupts this in two ways:

• Heat-Affected Zone (HAZ) sensitization: At temperatures between 450–850°C — the range reached in the HAZ during laser and plasma cutting — chromium precipitates out of the steel matrix as chromium carbide at grain boundaries. The areas adjacent to the cut are depleted in chromium and become susceptible to inter-granular corrosion (weld decay), even though they are not the cut edge itself.
• Recast and dross: Laser cutting leaves a solidified recast layer (typically 50–150 µm) that has different hardness, composition, and corrosion behaviour from the base material. Plasma cutting produces adhered dross on the underface that must be mechanically removed before fabrication.

In food processing and pharmaceutical equipment, where stainless steel surfaces must meet hygienic surface finish standards (Ra ≤ 0.8 µm after polishing), a HAZ or recast layer on the cut edge creates a non-conformance that fails inspection.

ⓘ  Waterjet advantage: Because the cutting mechanism is purely mechanical erosion at ambient temperature, there is no HAZ, no recast layer, no chromium depletion, and no dross. The cut edge retains the same chemical composition and passive layer behaviour as the parent material. In most cases, a waterjet cut stainless edge requires only deburring — no grinding, no passivation treatment, no acid pickling.

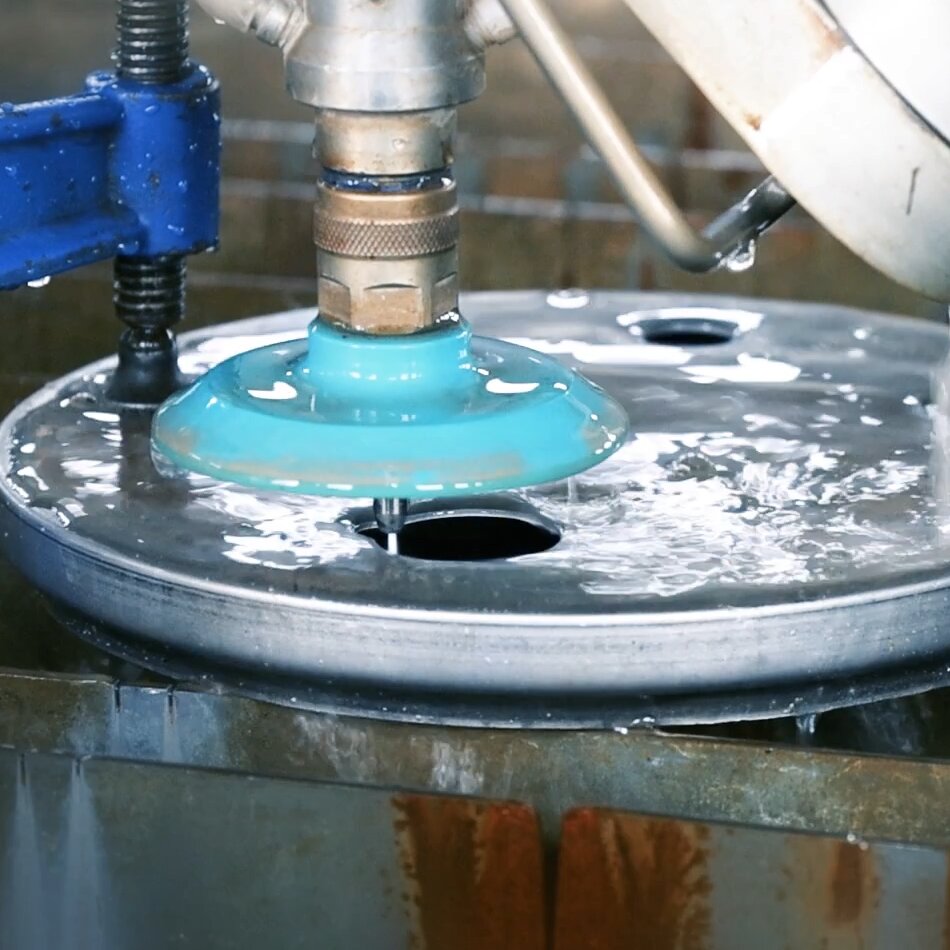

Cutting Parameters by Stainless Steel Grade

Reference parameters for WONLEAN CNC waterjet systems using 80-mesh garnet abrasive:

* Harder precipitation-hardened grades (17-4PH, 15-5PH) require higher pressure and slower feed than standard austenitic grades. Speed drops approximately 40% at 25 mm thickness vs. 10 mm.

Edge Quality Grades and When Each is Appropriate

Waterjet edge quality is controlled primarily by cutting speed — slower speed produces smoother edges. Buyers often over-specify edge quality, which unnecessarily reduces throughput. The practical guide:

Industry Applications: Stainless Steel Waterjet Cutting in Practice

• Food & beverage machinery: 316L stainless conveyor components, tank panels, and processing equipment blanks. Waterjet cut edges meet hygienic design requirements without additional surface treatment.
• Chemical & pharmaceutical: Reactor vessel panels, filter housings, and pipework flanges in 316L and duplex grades. No HAZ eliminates corrosion risk at cut edges in chloride environments.
• Marine hardware: Grade 316 structural brackets, deck fittings, and hull penetrations. Corrosion resistance fully preserved at cut edges without post-cut acid pickling.
• Architectural metalwork: Decorative screens, cladding panels, custom signage, and balustrade infills in brushed or mirrored 304/316L. Complex cut profiles produced directly from DXF files.
• Energy & power generation: Heat exchanger tube sheets, pressure vessel heads, and turbine component blanks in duplex and super-duplex grades.

Choosing the Right WONLEAN Machine for Stainless Steel

WONLEAN Series A is recommended for stainless steel cutting in precision manufacturing environments. Its 10 mm thick-wall welded steel frame and cast-iron Z-axis maintain ±0.02 mm mechanical accuracy across long cutting cycles in dense materials like duplex stainless. The direct servo-drive eliminates backlash that affects edge straightness on long cuts.

WONLEAN Series E is suitable for standard 304/316L production cutting where ultra-precision is not required and cost efficiency per part is the priority.
