Waterjet Cutting Stone: Marble, Granite & Architectural Stone Guide

Stone cutting is one of the oldest trades in the world — and one of the most technically demanding when the standard is architectural precision. Marble medallions, granite countertop cutouts, travertine floor mosaics, sandstone façade panels: each demands a cut edge that is smooth, crack-free, and geometrically exact. For decades, achieving this required skilled masons, diamond-blade saws, and significant secondary grinding.

Abrasive waterjet cutting has changed this equation fundamentally. It cuts any stone species without vibration, without blade contact, and without generating the micro-fractures that diamond saw blades inevitably introduce into brittle crystalline materials. The result is a smoother edge in a single pass — and the ability to cut shapes that no saw blade can follow.

Why Stone Cracks Under Conventional Cutting — and Why Waterjet Doesn't

Natural stone — marble, granite, limestone, onyx, slate — is a crystalline or sedimentary material with internal grain structures, micro-fissures, and varying hardness across the face of a single slab. When a diamond blade contacts stone at high rotational speed, it transmits mechanical shock vibration into the slab. In marble especially, this vibration propagates along natural crystal cleavage planes, producing micro-cracks at the cut edge and occasionally fracturing the slab entirely through a pre-existing vein.

Waterjet cutting removes material through erosion, not mechanical force. The abrasive stream — a homogeneous mix of water and garnet travelling at supersonic velocity — removes material grain by grain without transmitting vibration into the surrounding stone. The waterjet applies negligible lateral force to the workpiece, which means:

• Veined marble can be cut across or along veins without fracture risk
• Thin stone (8–15 mm) can be cut without the clamping pressure that blades require
• Complex curves, re-entrant corners, and tight radii are achievable without stress concentration
• Cut edges typically require no secondary grinding — surface roughness Ra 3.2–6.3 µm on most stone species

Reference Cutting Parameters for Common Stone Species

Parameters tested on WONLEAN CNC waterjet systems using 80-mesh garnet abrasive at 380 MPa operating pressure:

* Parameters vary with slab thickness, vein density, and desired edge quality. Free sample cuts available on customer-supplied slabs.

The Mosaic Inlay Application: Where Waterjet Is Irreplaceable

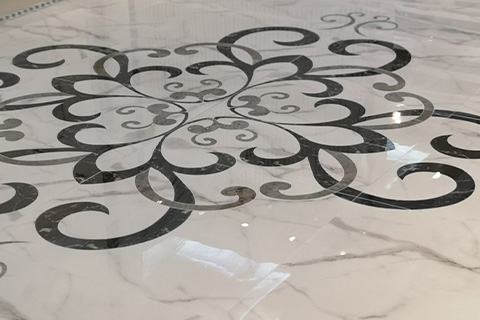

Waterjet stone cutting reaches its highest value in decorative mosaic inlay work — the technique where contrasting stone species are cut to interlocking geometries and assembled into floor medallions, wall art, or feature panels.

The precision requirement for inlay work is extreme: each piece must mate with its neighbours with a gap of less than 1 mm, across hundreds of individual cuts involving curves, points, and compound angles. No saw blade can achieve this — the minimum cutting radius of a circular blade is fixed by blade diameter. Waterjet has an effective cutting radius approaching zero, limited only by the kerf width (typically 0.8–1.2 mm).

ⓘ  How it works: The mosaic pattern is drawn in CAD, nested to minimize material waste, and sent directly to the waterjet CNC controller. The machine cuts all pieces from the respective stone slabs. Because all cuts are made from the same DXF file, mating pieces are geometrically exact — no hand fitting required. Assembly is a matter of placing pre-cut pieces according to the layout drawing.

Key Application Areas

Multi-Head Stone Cutting: Doubling Tile Output

For stone fabricators cutting large volumes of identical tiles or panels, WONLEAN's multi-head waterjet configuration doubles output from a single machine. Two cutting heads run in parallel, each following the same programmed path, cutting two identical pieces simultaneously from adjacent areas of the same slab.

For a standard 600×600 mm granite floor tile at 20 mm thickness, a twin-head WONLEAN system typically doubles per-shift tile output compared to a single-head machine — with no additional operator requirement.

Request a Stone Cutting Sample

Send us your slab material — marble, granite, onyx, or engineered stone — and WONLEAN engineers will cut your chosen pattern at our factory. You receive the cut pieces, edge quality photos, and a parameter report before any purchase decision. International customers: trial documented with full video.
