Titanium alloys, particularly TC4 (Ti-6Al-4V), are widely utilized across aerospace, medical device manufacturing, marine engineering, and high-performance automotive industries due to their high strength-to-weight ratio, exceptional corrosion resistance, and heat tolerance. However, these very properties make titanium notoriously challenging to machine using conventional thermal cutting methods such as laser or plasma.
Thermal cutting creates a Heat-Affected Zone (HAZ), which leads to thermal distortion, material discoloration, and micro-cracking along the edge of titanium parts. To overcome these limitations, cold-cutting ultra-high-pressure abrasive waterjet technology has emerged as the industry standard for precision titanium processing.
This guide explores the technical mechanisms, key operational parameters, and practical advantages of cutting TC4 titanium using WONLEAN Waterjet systems.
Abrasive waterjet cutting operates purely on supersonic erosion driven by ultra-high-pressure water (up to 420 MPa) mixed with garnet abrasive. Because it is a cold processing technology, it generates no heat during cutting, completely eliminating material deformation, edge hardening, and metallographic structure changes in TC4 titanium.
Equipped with 5-axis linkage and automatic taper compensation heads, advanced CNC waterjets achieve structural precision up to ±0.02 mm. This high accuracy drastically reduces or eliminates the need for subsequent CNC milling or grinding, lowering total manufacturing costs.
Unlike lasers, which struggle with thick titanium plates due to heat buildup and energy loss, waterjets can cleanly cut TC4 titanium plates ranging from thin sheets (1 mm) up to heavy sections exceeding 100 mm without losing edge squareness.
Optimizing cutting speed and abrasive consumption is critical for balancing production efficiency with edge quality. Below are industrial reference parameters tested on WONLEAN ultra-high-pressure waterjet machines using 80-mesh garnet abrasive:
TC4 Plate Thickness | Cutting Speed Range | Recommended Abrasive Consumption | Recommended Pressure | Edge Finish Quality |
10 mm | 200 – 350 mm/min | 400 – 450 g/min | 380 – 410 MPa | Smooth / Minimal Taper |
20 mm | 90 – 160 mm/min | 450 – 500 g/min | 380 – 410 MPa | Industrial Fine Finish |
30 mm | 45 – 80 mm/min | 500 g/min | 400 – 420 MPa | Precision Industrial Cut |
Note: For delicate components or initial hole piercing in thick titanium plates, WONLEAN systems utilize an intelligent low-pressure soft-piercing mode to prevent material delamination and abrasive blowback before ramping up to maximum operating pressure.

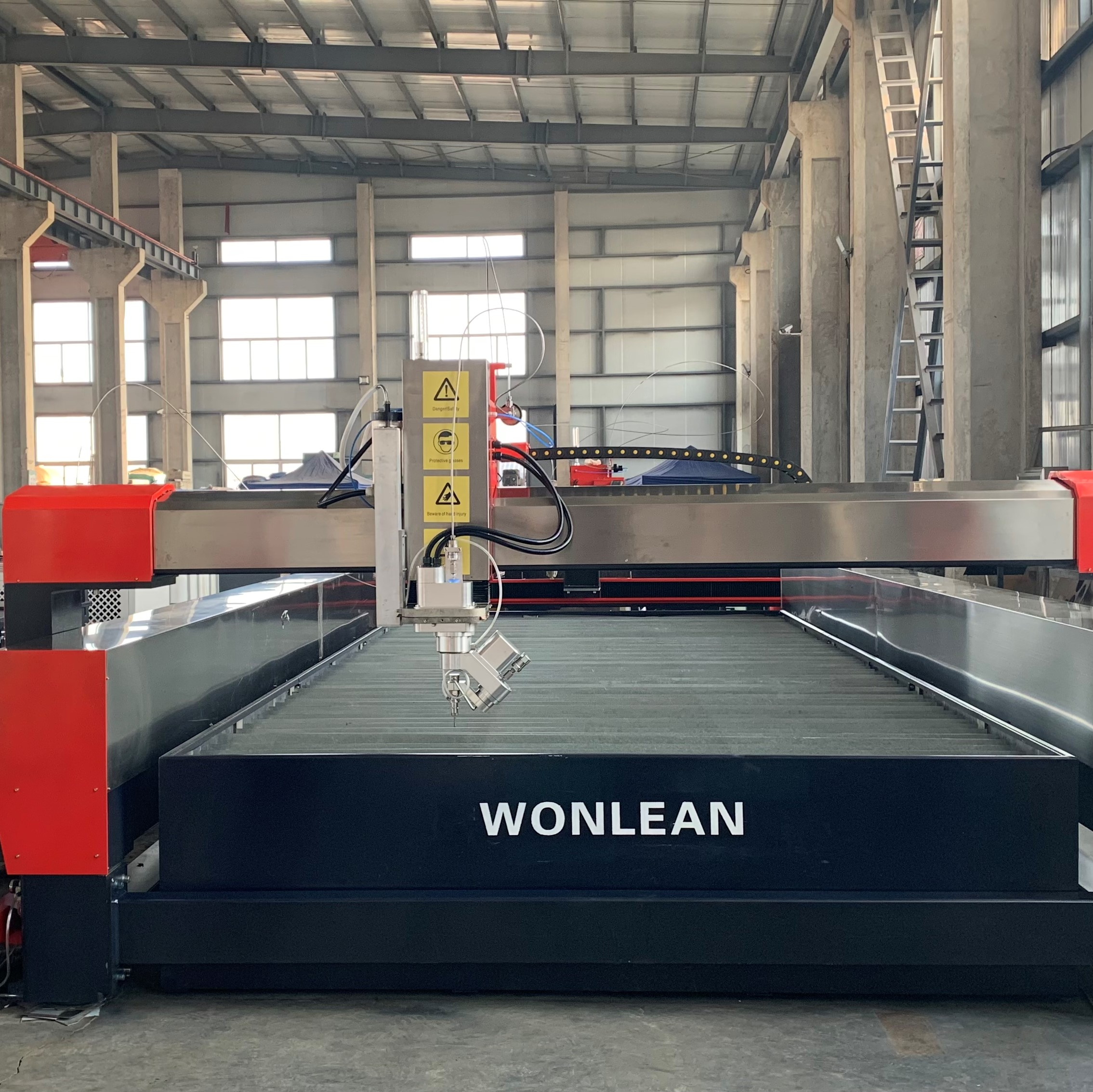

Engineered specifically for challenging industrial metals, WONLEAN Waterjet integrates several advanced technologies into its CNC gantry and robotic waterjet lines:
Ultra-High-Pressure Pump Reliability: Built-in continuous pressure stabilization ensures uniform abrasive stream delivery, resulting in smooth cut walls without striation marks.
Dynamic Taper Compensation: Multi-axis cutting heads automatically adjust the nozzle angle to cancel out edge taper on thick TC4 parts.
Automated Abrasive Delivery: Smart abrasive metering valves precise to ±2% help optimize garnet usage, directly reducing operational consumable costs.
Heavy-Duty Frame Construction: Rigid machine beds absorb vibration during long cutting cycles, maintaining consistent positioning accuracy across large-format workpieces.
Whether you require a standard CNC Gantry Waterjet, a Portable Explosion-Proof Cutter for specialized field operations, or a customized multi-head industrial cell, WONLEAN Waterjet delivers tailored cold-cutting machinery to meet your strict material specifications.
