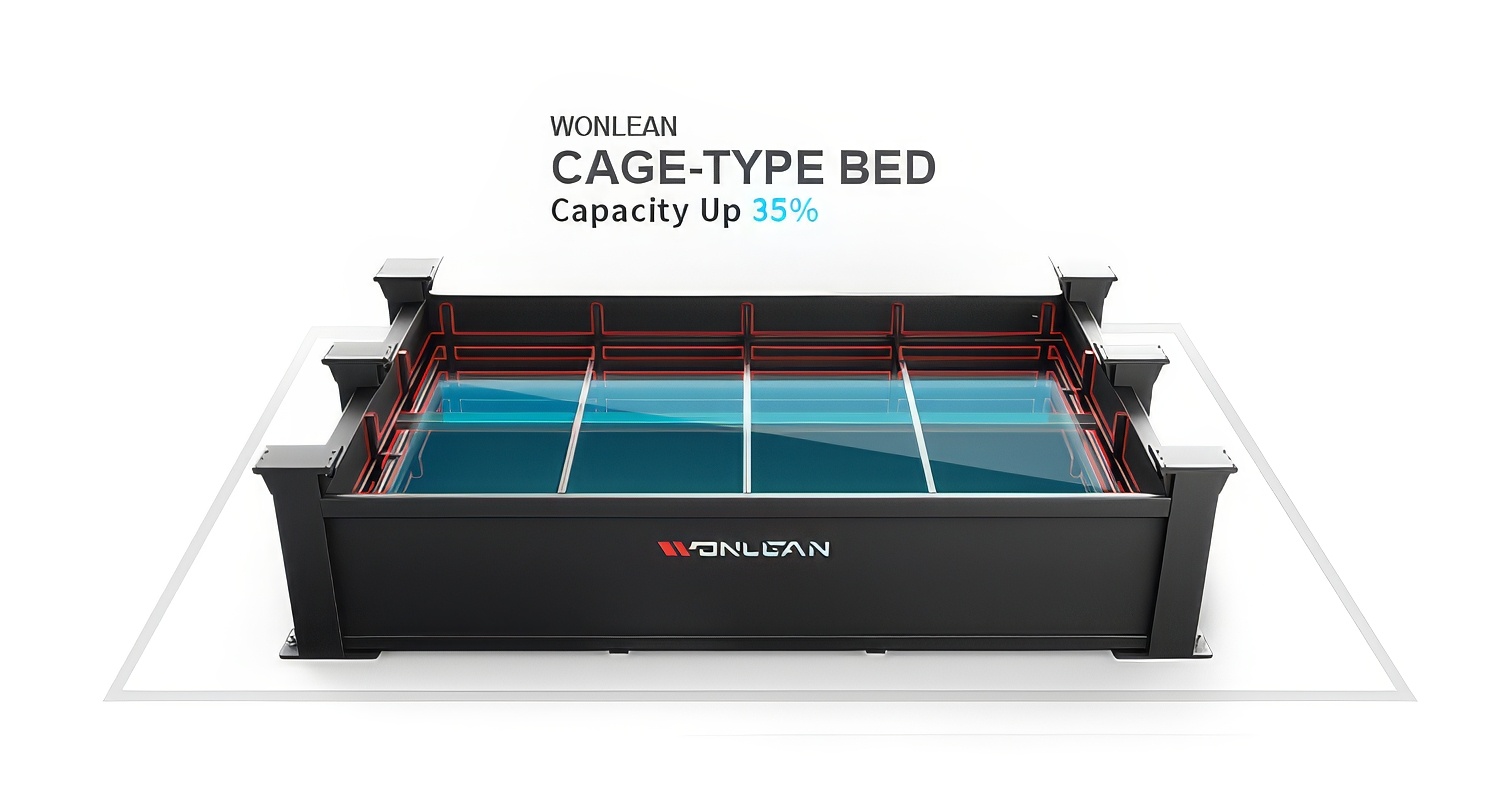

Wonlean Cage-type bed adopts integrated framework structure. The design incorporating water tank space into unify make structure more hard and stable. This design also increase 35% capacity, saving covering area, besides, modular assembly decreases 40% installation procession, ensuring equipment stable operation in long term.

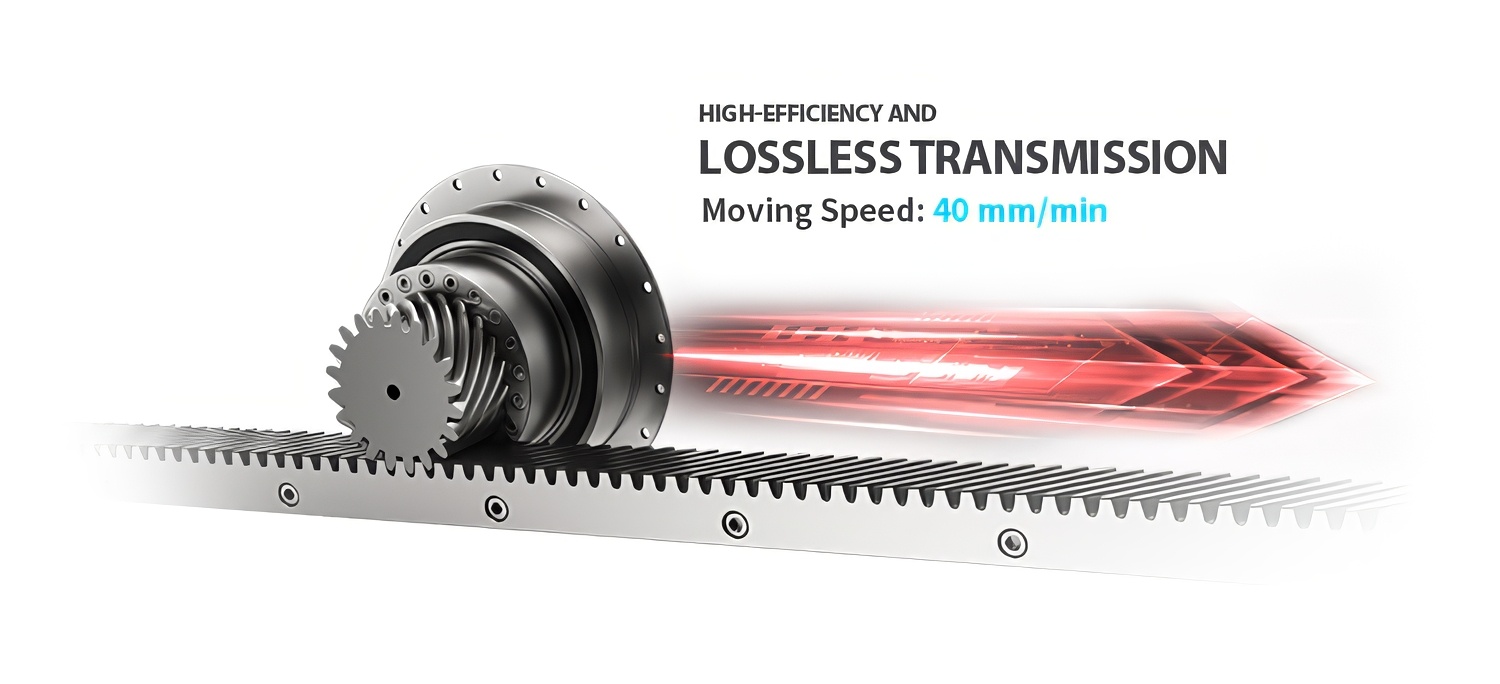

Wonlean innovative Nanoscale grinding rack and pinion system solves the problem of power transmission loss in industrial equipment. Compared to traditional water jet cutting machine that utilize thin ball screws for transmission, which are susceptible to vibration and overheating, this system ensures stable high-speed operation at 40m/min through precision tooth flank mesh, with no power loss in long travel distances. It is proved that it can increased 20%-60% production efficiency.

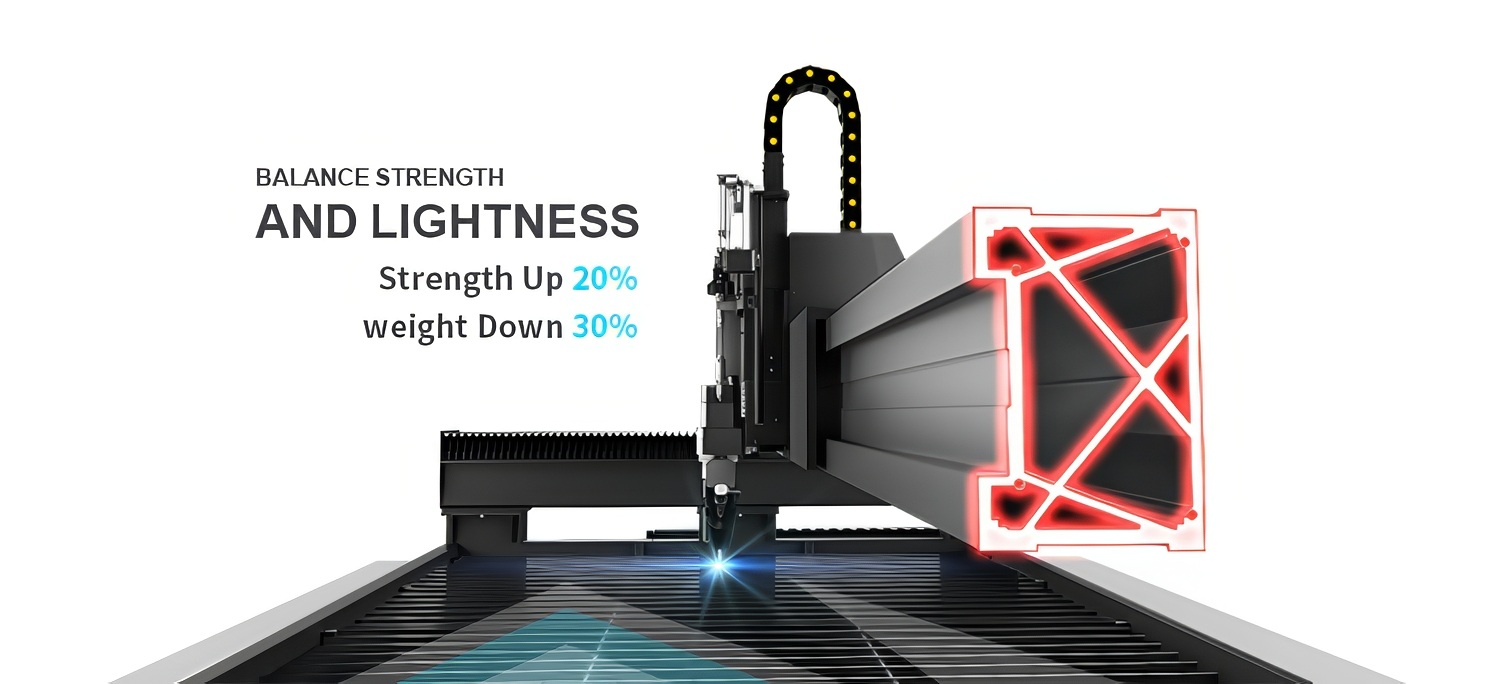

Wonlean adopts high-density aircraft-grade aluminum crossbeam( density 2.7g/cm3 ), promoting 20% strength with the weight decreasing 30%. High-pressure stretching technology promotes dynamic performance 20%. Precise control and stress relieving technology suppresses vibration. After test, this design makes key parts life over 30,000 hours.

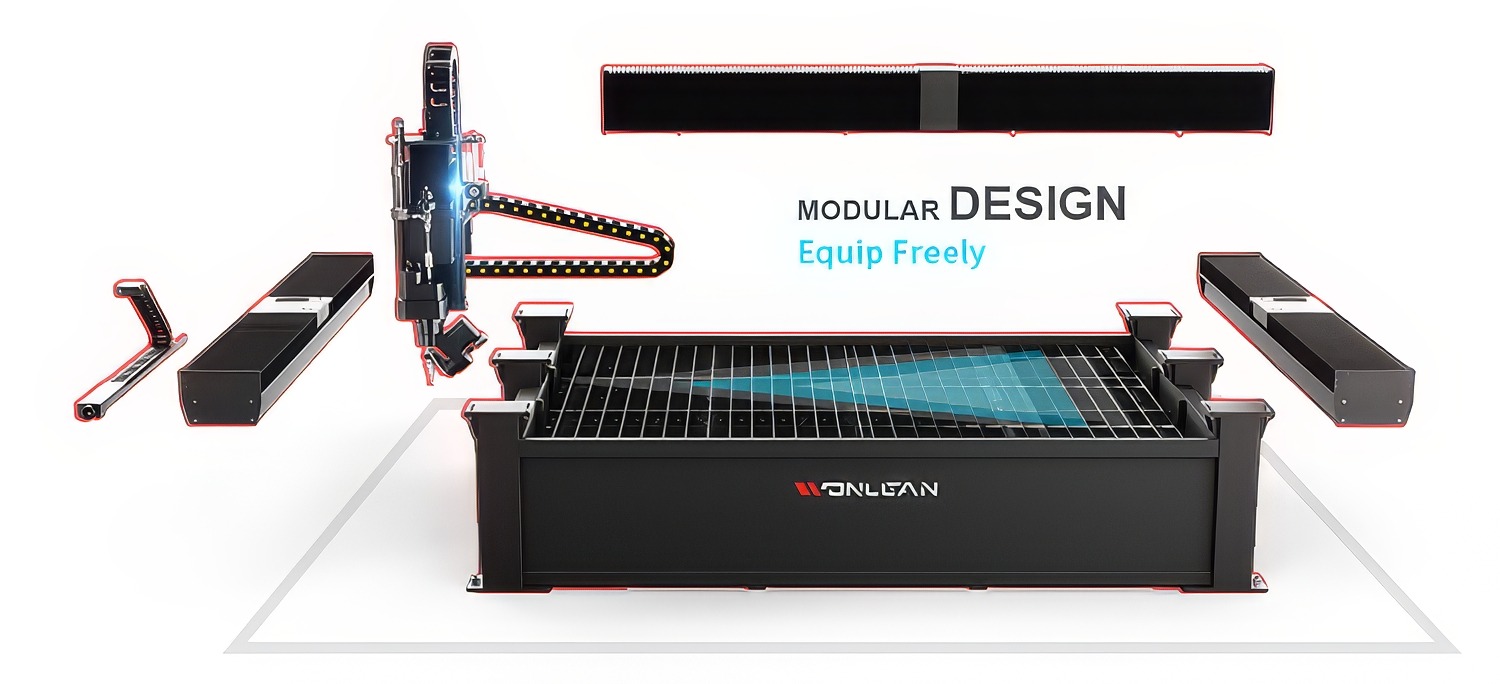

Wonlean modular design is highly flexible, which can equip freely to match various requirement perfectly. From small scale precision machining to large scale mass production, we all offer customized solutions, contributing to enterprises developing efficiently.
Automatically identifies CAD electronic drawings and generates cutting path and access parameters, reducing manual coding and repetitive operations while simplifying operations and improving productivity.
Enables fixed and variable angle cutting of up to 60 degrees, with an aluminum alloy cutting head structure that is lightweight, high strength, and has a small load. The cutting position deviation under 380Mpa high-pressure water is less than 0.01mm ,and the cutting accuracy is extremely high.
Everything is under control, flexible and convenient for tool adjustment, all functions from one, control machine operation at any time, magnetic suction design for easy access.
International top quality accomplishes the Wonlean classic.

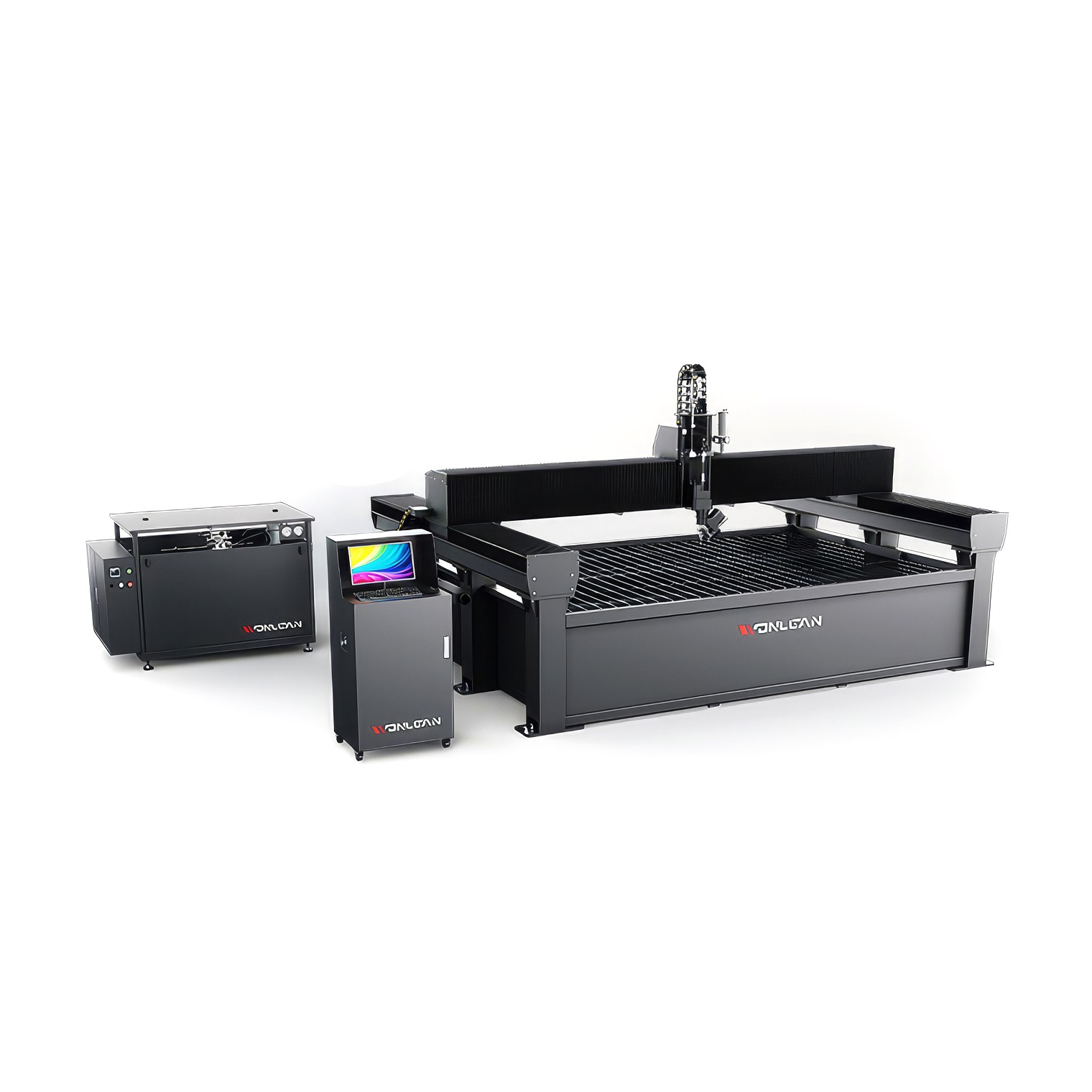

WONLEAN CNC Water Jet cutting machine series E is designed for industrial processing and mass production scenarios, adopting a cage-type integrated framework bed structure. The bed integrates the water tank space into the overall framework, forming a rigid and stable structure. This integrated design optimizes the internal space layout of the equipment, and supports modular assembly to shorten the on-site installation process. The structure supports long-term stable operation of the equipment under continuous working conditions, and adapts to multi-shift production arrangements.
The transmission system adopts nanoscale ground rack and pinion structure. Different from traditional ball screw transmission, this structure maintains stable meshing during long-travel operation. The rated running speed of the equipment reaches 40m/min, supporting stable high-speed movement of the cutting head. The transmission structure reduces power attenuation in long-distance travel, and adapts to large-format cutting scenarios with frequent axis movement.
The crossbeam of this series is made of high-density aircraft-grade aluminum, with a material density of 2.7g/cm³. The crossbeam is processed by high-pressure stretching technology, and undergoes stress relieving treatment to suppress vibration during operation. According to internal test data, the service life of key components under this design exceeds 30,000 hours.
The machine adopts a modular design with high configuration flexibility. Each functional module can be combined freely to match different processing requirements. This design is adaptable to production demands of different scales, from small-batch precision processing to large-scale mass production. Customized configuration solutions are available according to specific production needs and workpiece characteristics.
The control system supports automatic identification of CAD electronic drawings, and automatically generates cutting paths and operation parameters. This function reduces manual programming workload and repetitive operation steps, and improves the response speed of production scheduling. It is suitable for processing workpieces with diverse and complex shapes in batch production.
This series supports 3D Water Jet cutting, enabling both fixed-angle and variable-angle cutting with a maximum angle of 60 degrees. The cutting head adopts an aluminum alloy structure, with light weight and high structural strength. Under 380MPa high-pressure water flow, the cutting position deviation is less than 0.01mm.

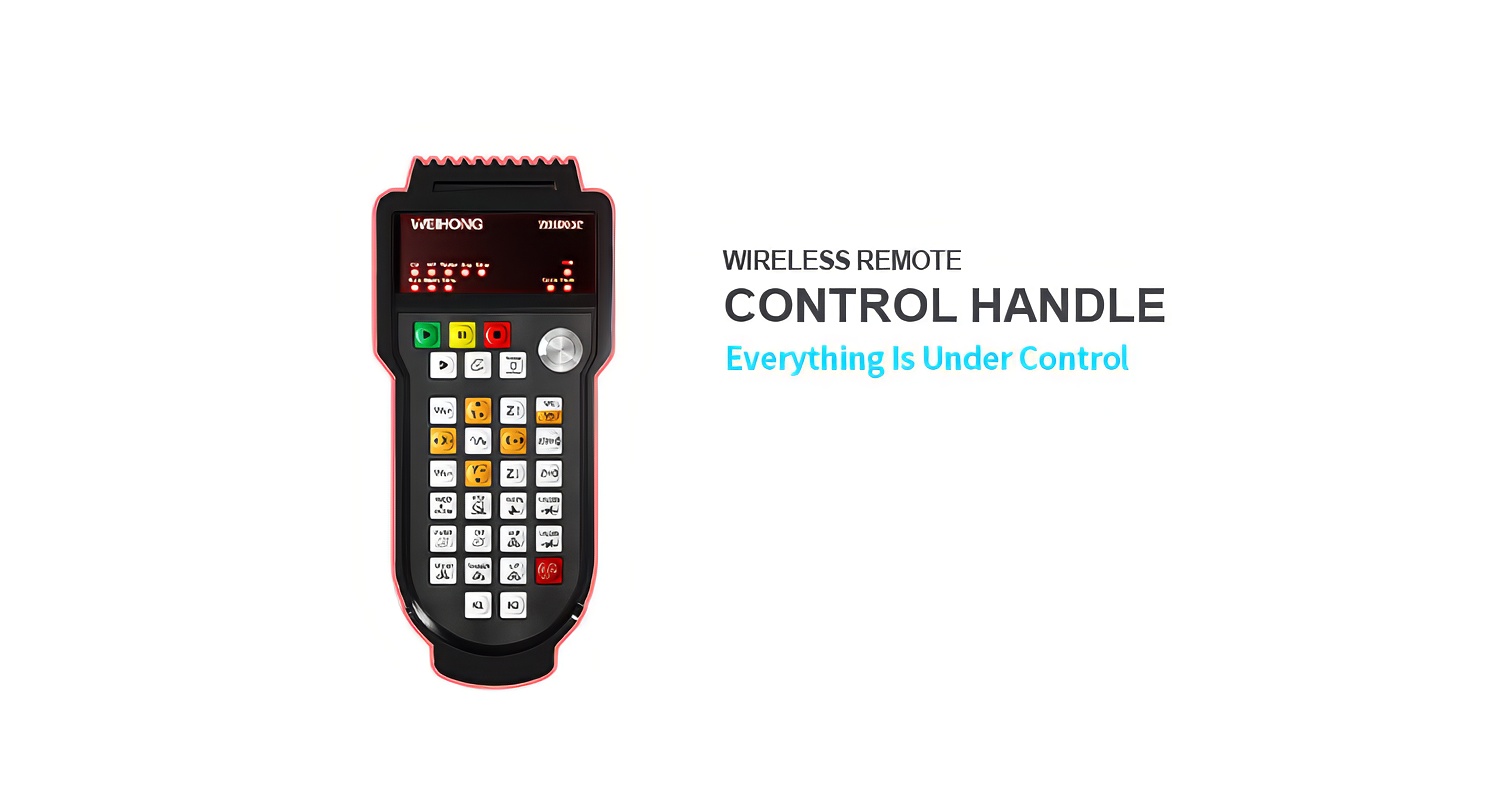

The equipment is equipped with a wireless remote control handle, which supports control of machine operation and tool adjustment. Operators can control the equipment at any position within the signal range, which is convenient for tool setting and debugging. The handle adopts a magnetic suction design for easy storage and access.
The main components of the machine are sourced from internationally known brands, including YASKAWA, Omron, HIWIN, Rexroth, Schneider, Siemens, KMT, and AirTAC. The configuration of mature industrial components supports the stability and maintainability of the equipment in long-term operation.
This series of Water Jet cutting machines is suitable for various commercial procurement scenarios, including sheet metal processing, stone processing, glass manufacturing, auto parts production, and aerospace component processing. It can cut a wide range of materials, such as various metals, stone, glass, ceramics, rubber, and composite materials. The cold cutting process does not produce thermal deformation on the workpiece surface, and does not change the material properties of the cutting edge.
The 3D cutting head supports both fixed and variable angle cutting, with a maximum adjustable angle of 60 degrees, which can meet the processing needs of most bevel and 3D shaped workpieces.
Yes, the machine adopts a modular design, and can be configured with corresponding functional modules according to your production scale and processing requirements. Customized solutions are available for both small-batch precision processing and large-scale mass production.
The core components such as servo system, electrical parts, transmission parts and high-pressure components are sourced from multiple internationally known industrial brands. You can contact our team for a detailed component list.
Yes, we provide free sample trial cutting service. You can send your workpiece materials and drawings, and we will arrange trial cutting and provide processing samples for your reference.
