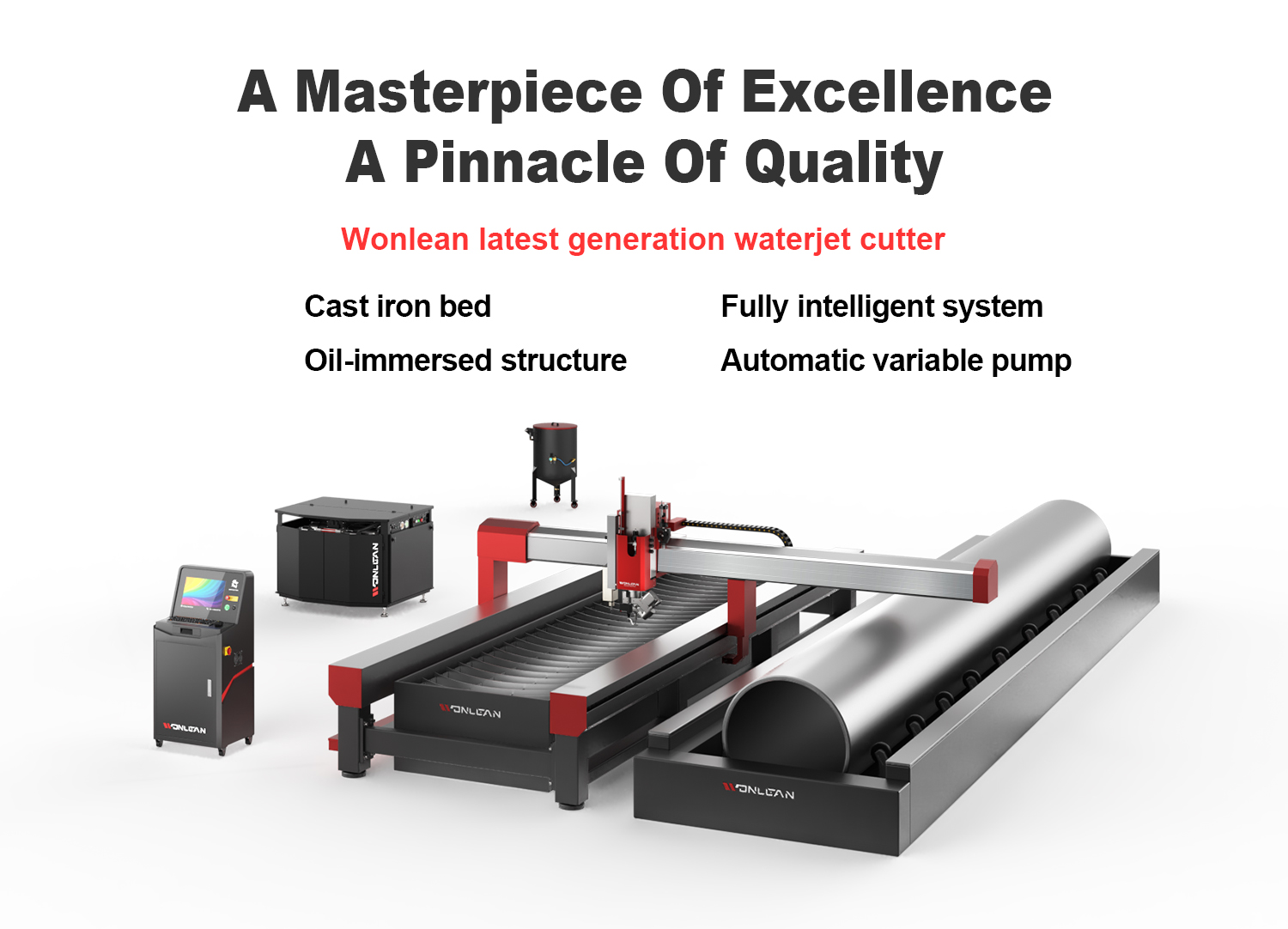

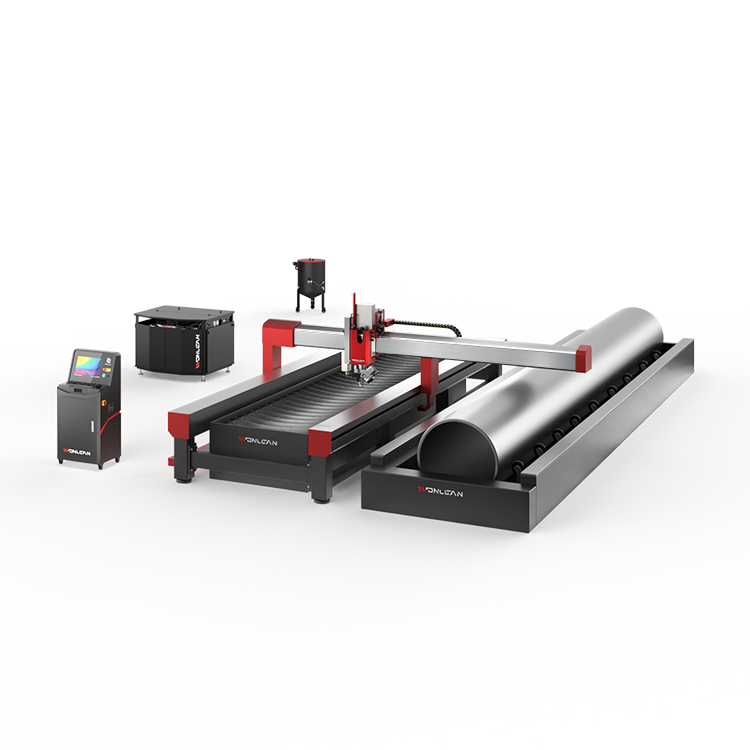

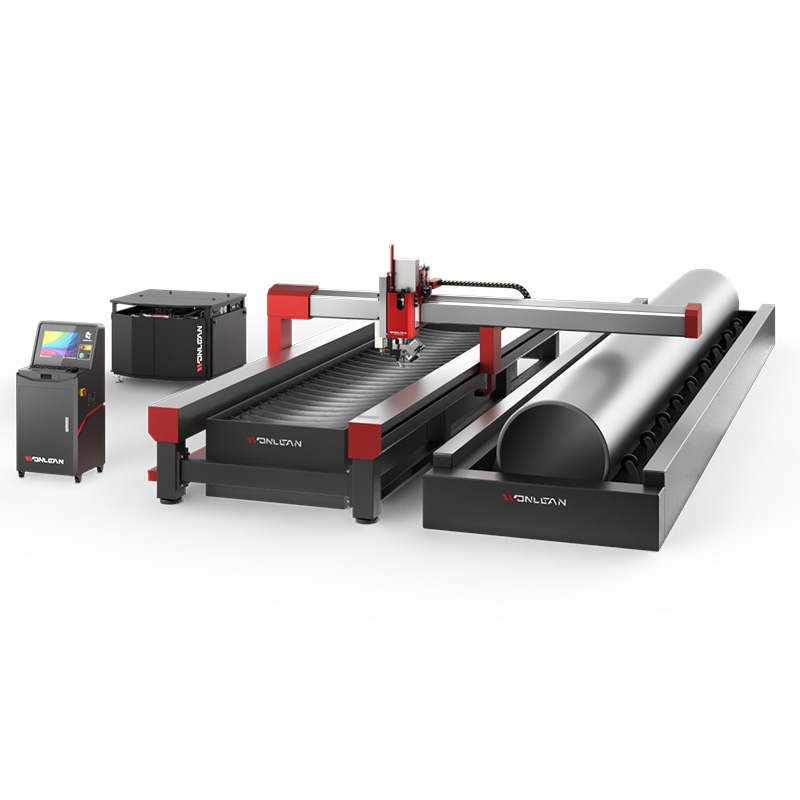

The Sheet and Pipe Integrated Waterjet Cutter represents a definitive solution for metal fabrication facilities requiring dual-purpose machining without compromising on dimensional accuracy. By combining flatbed sheet processing with rotary pipe profiling in a single footprint, this equipment eliminates the necessity of transferring heavy materials between different workstations. Operators can transition from slicing thick steel plates to contouring complex cylindrical tubes with minimal setup adjustments. The physical presence of the machine communicates immediate durability, characterized by its heavy concrete-poured foundation and the cool, metallic finish of its protective enclosures. It delivers cold-cutting precision that leaves material edges completely free of heat-affected zones, warping, or micro-cracking, ensuring that every fabricated component is ready for immediate assembly or welding.

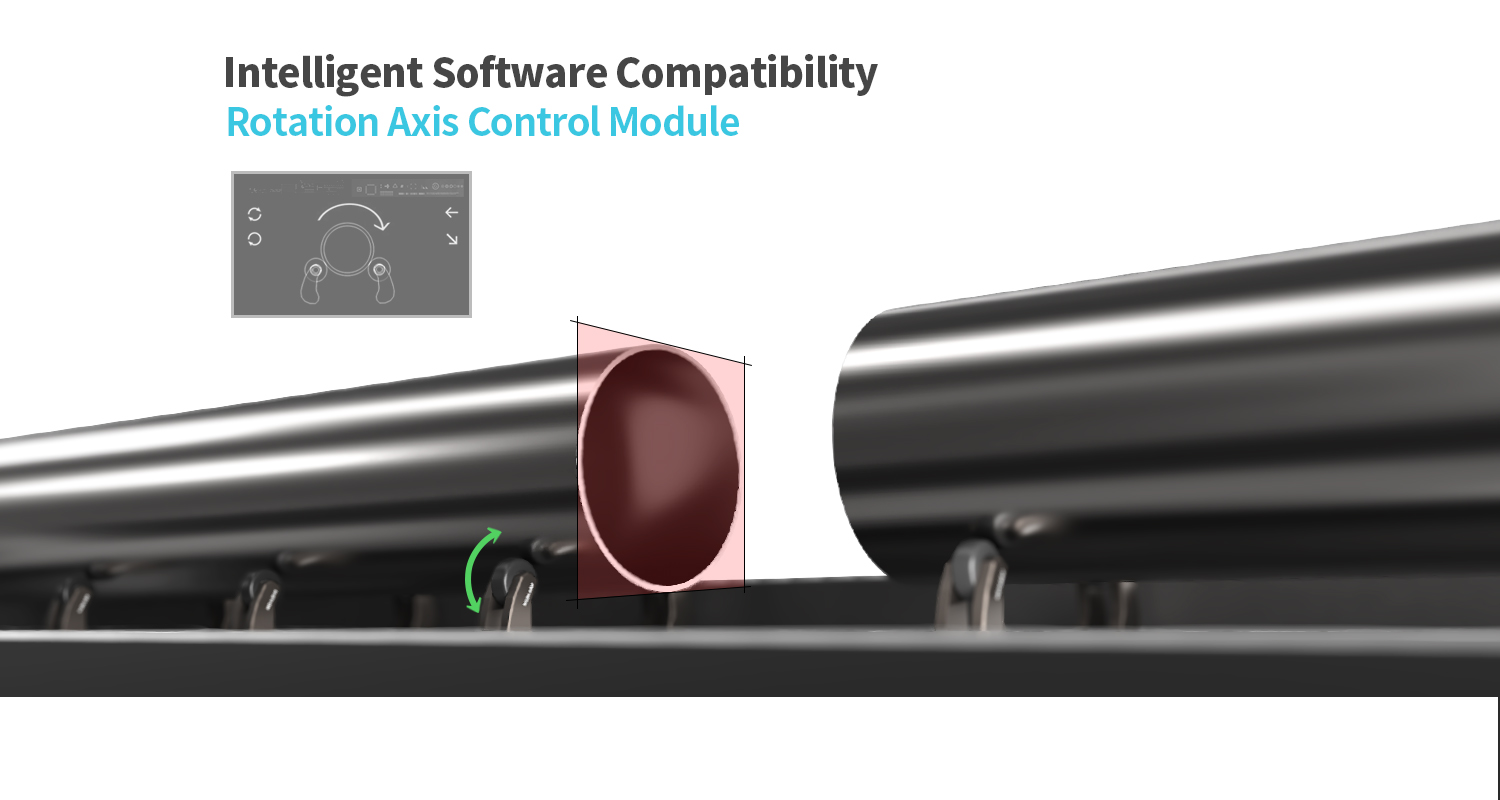

The software has a built-in rotation axis control module , which does not require borrowing data from other transmission axis. Whether cutting plates or pipes, you can start without switching data, which is convenient and fast.

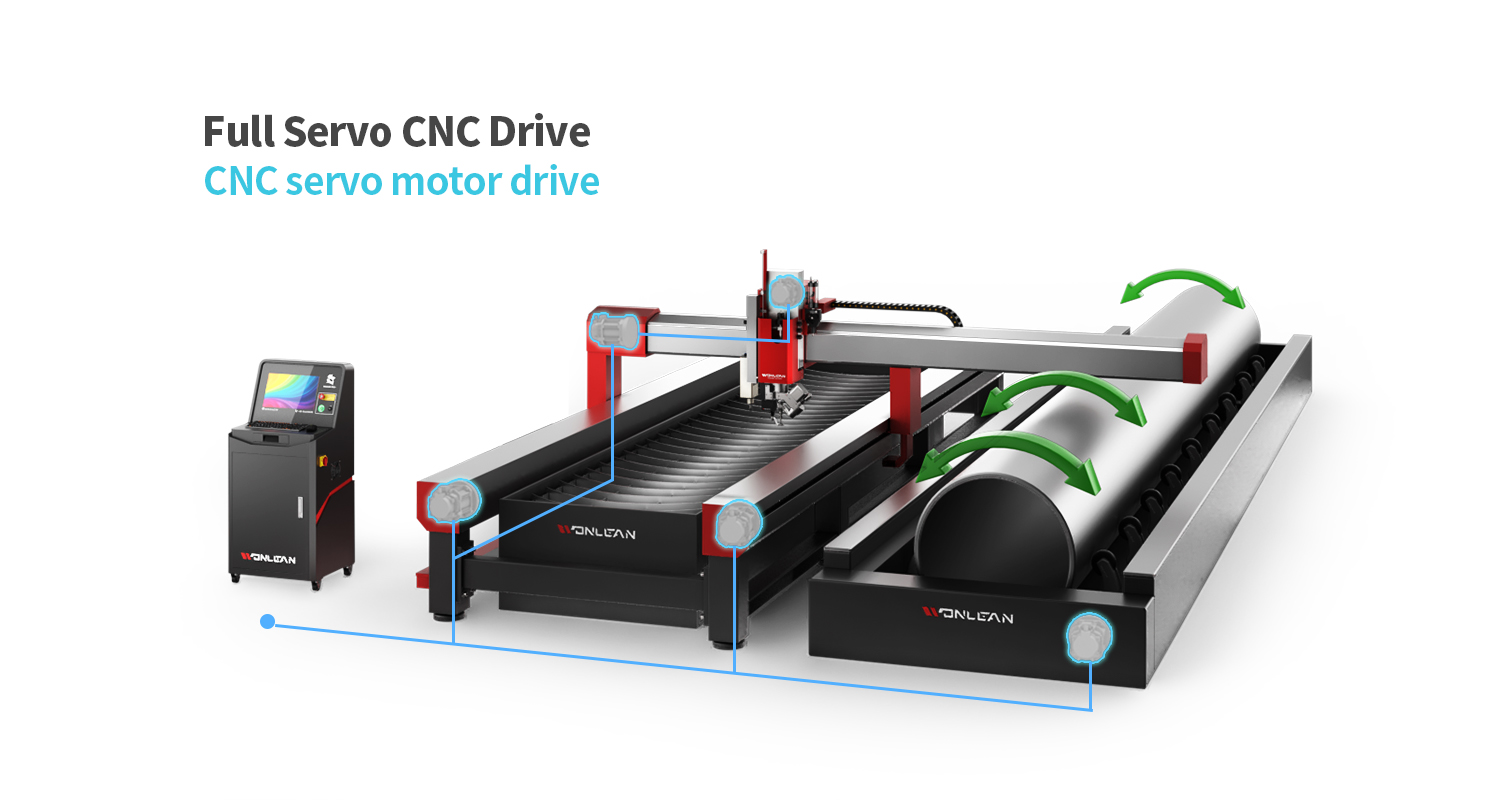

The pipe turning mechanism adopts CNC servo motor drive, which can meet the cutting of any shape and curve of the pipe surface. Whether cutting sheets or pipes, the error is within a millimeter, and the accuracy is precise.

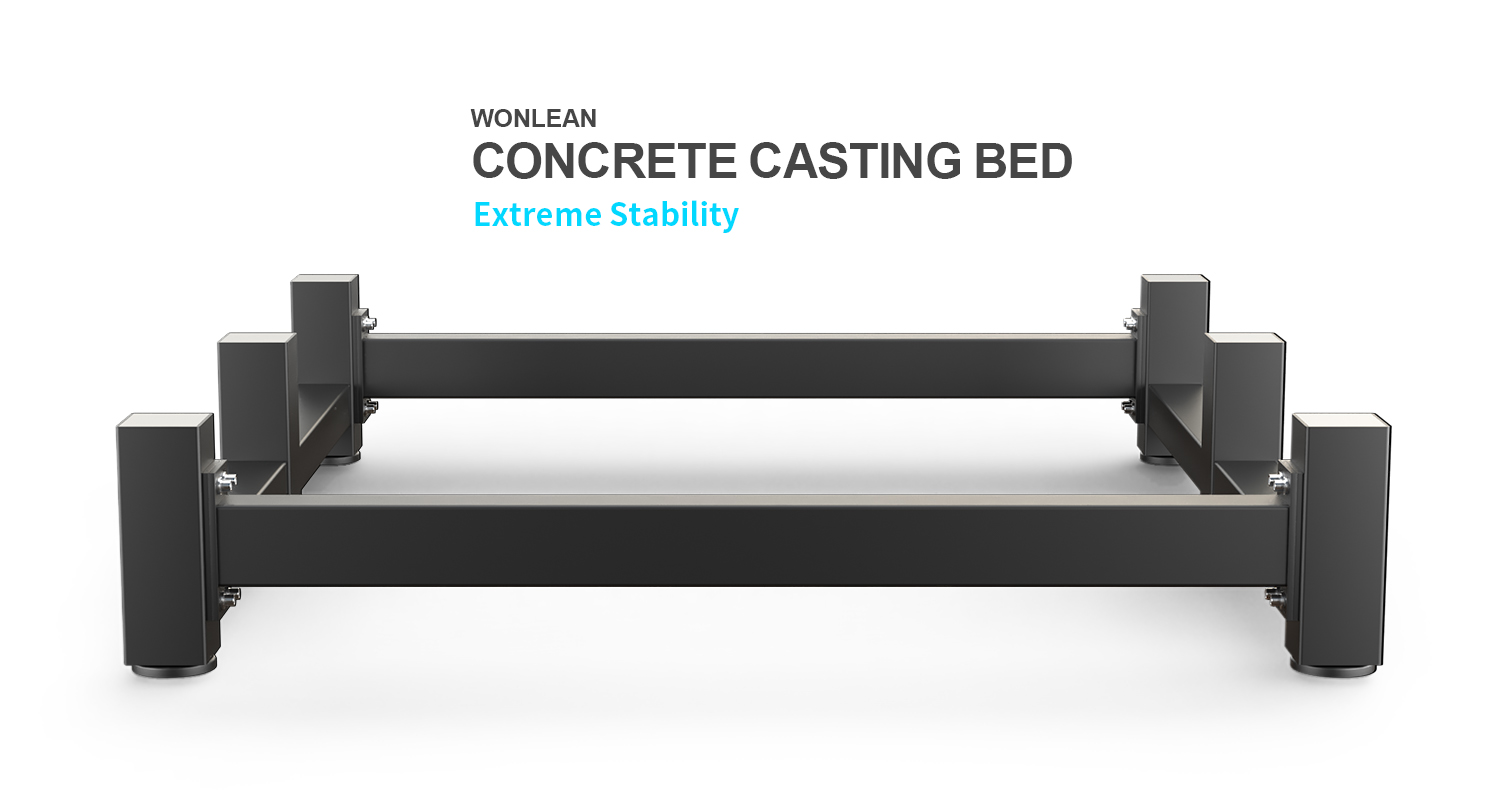

After finite element analysis, the bed is welded with the best stress points and support structures. After aging treatment, the bed is cast with concrete , providing extreme stability and excellent shock absorption. This greatly reduces bed stress and maintains accuracy in the long term.

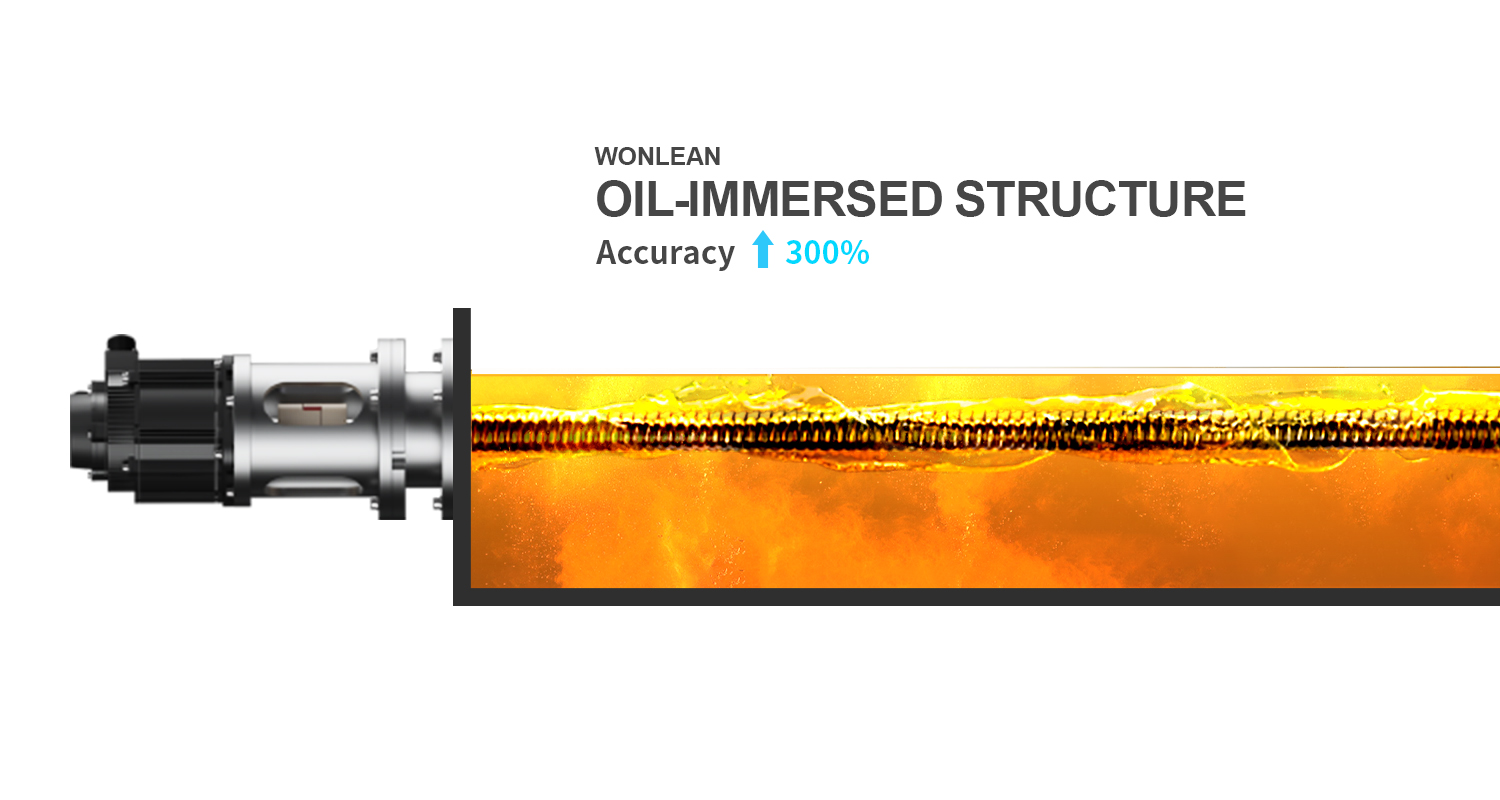

The guide rail and ball screw are fully immersed in an oil tank，providing ample lubrication and preventing the wear of the transmission system caused by abrasive and water splash. This feature not only provides ultra-high cutting precision but also greatly improves the lifespan of the machine, solving the issue of serious accuracy degradation in traditional water jet cutter. And no matter when the cutting is accurate.

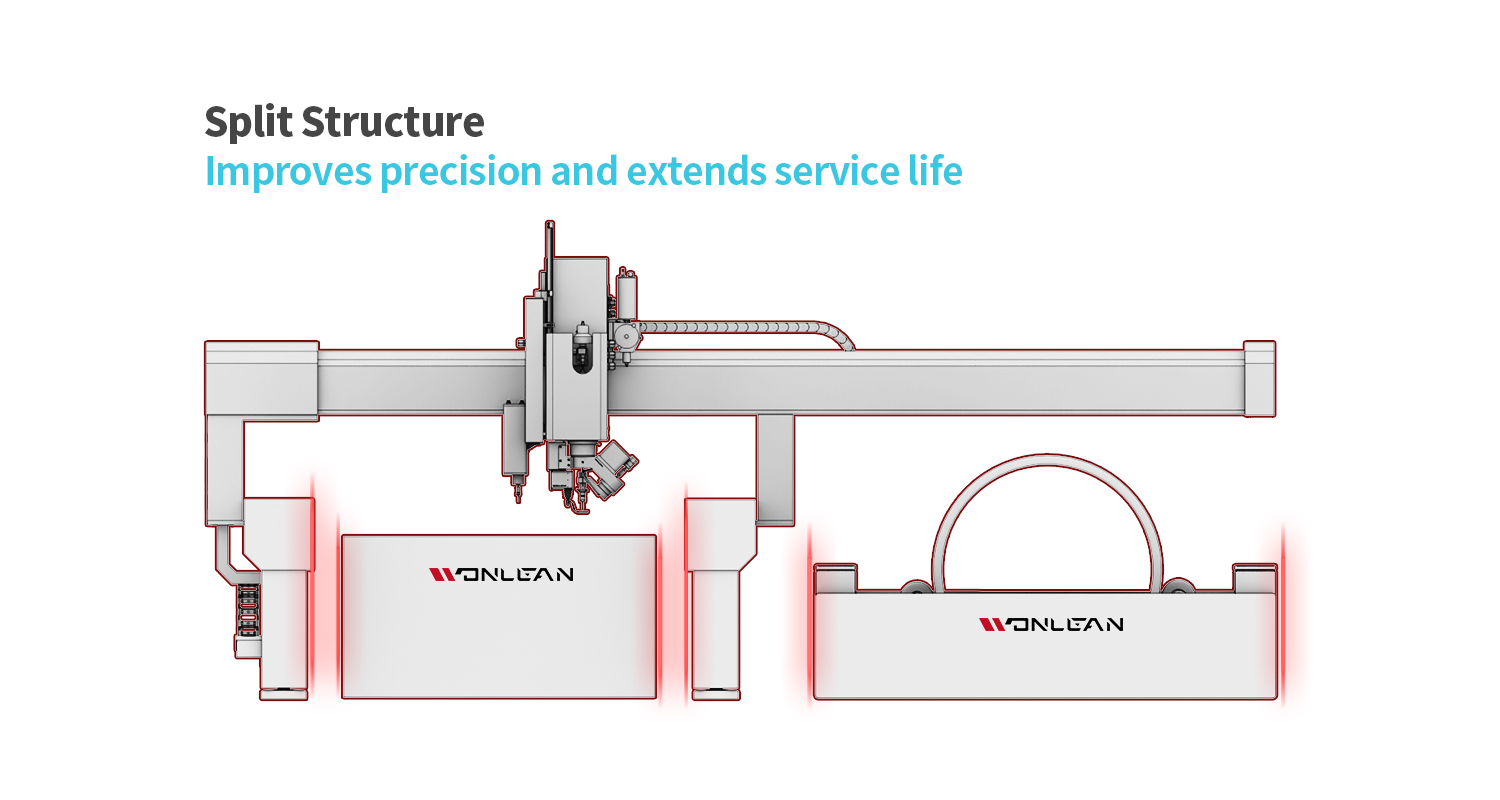

The bed and water tank of the waterjet cutting table are completely separated, adopting split design that avoids the risk of the bed becoming deformed due to the deformation of the water tank over time and ensures the precision and lifespan of the bed.

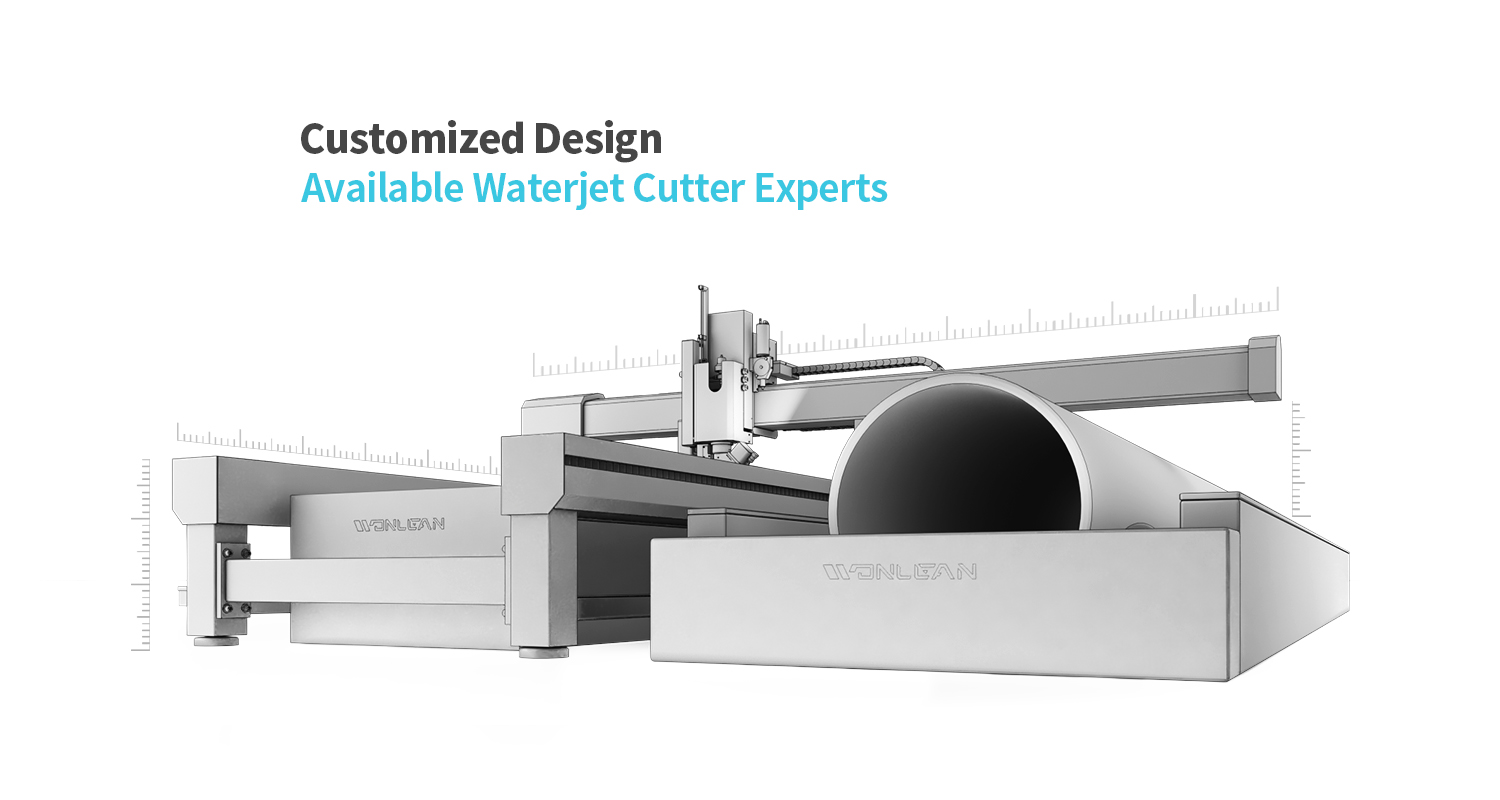

We can customize the waterjet cutting table according to the size of your workpiece, and only the most suitable one is the best.

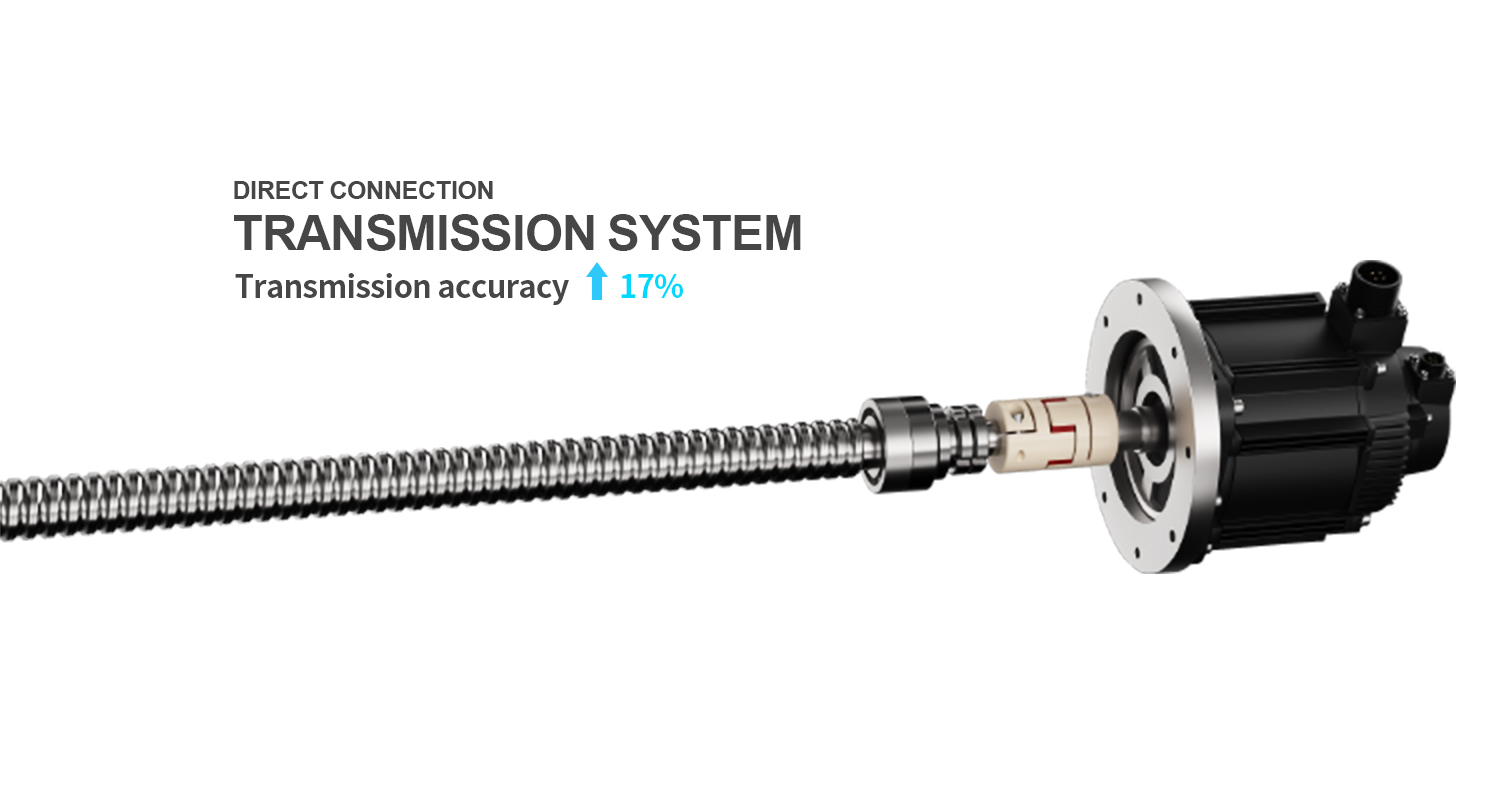

The high-power servo motor is directly connected with large-diameter ball screw and guide rail, which has smaller transmission losses, higher precision, and greater stability compared to traditional synchronous belt connection. The accuracy is achieved to within a thousandth of a millimeter.
The X, Y, Z axis adopts an external high-quality stainless steel wire drawing casing and internal high-quality dustproof folding design, providing double-seal protection that effectively protects the machine and ensures complete sealing. This is currently the most effective sealing form for waterjet cutter.

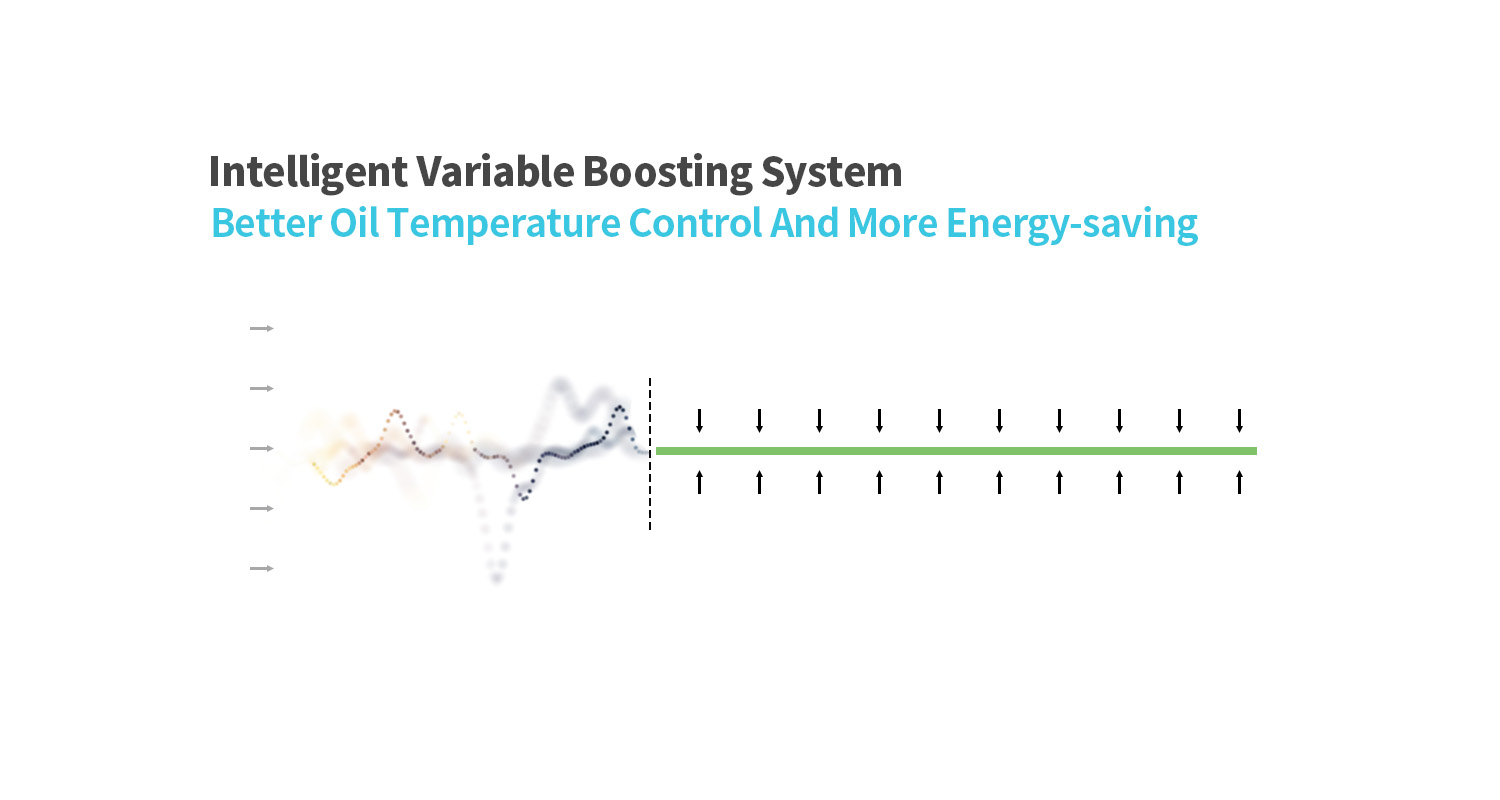

Equipped with a variable oil pump and a intelligent variable high pressure system consisting of four imported valve bodies, our intelligent variable pressure system intelligently adjusts the oil volume based on pressure requirements, ensuring high cutting efficiency, better oil temperature control and more energy-saving.
Automatically identifies CAD electronic drawings and generates cutting path and access parameters, reducing manual coding and repetitive operations while simplifying operations and improving productivity.

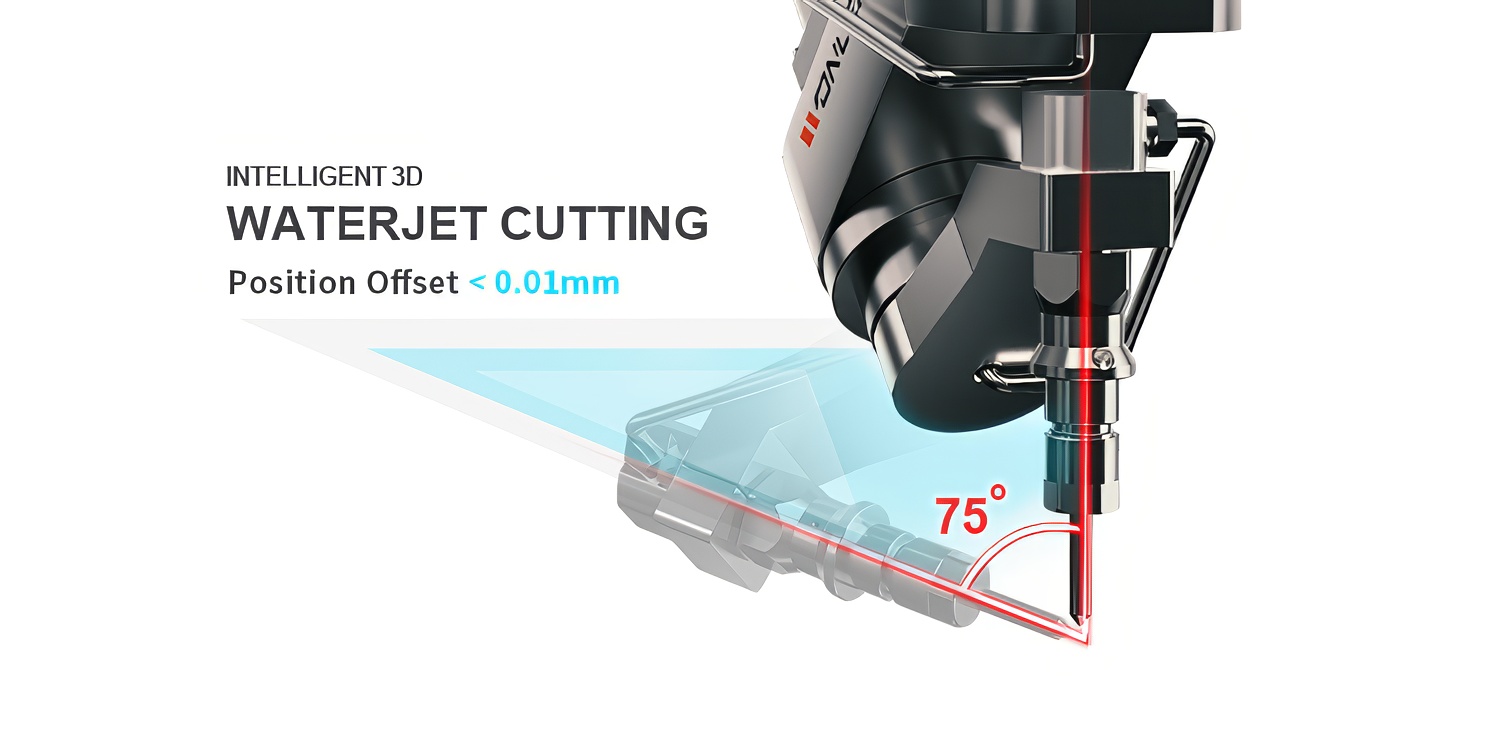

Enables fixed and variable angle cutting of up to 60 degrees, with an aluminum alloy cutting head structure that is lightweight, high strength, and has a small load. The cutting position deviation under 380Mpa high-pressure water is less than 0.01mm ,and the cutting accuracy is extremely high.
Flexible and convenient for tool adjustment
All functions from one

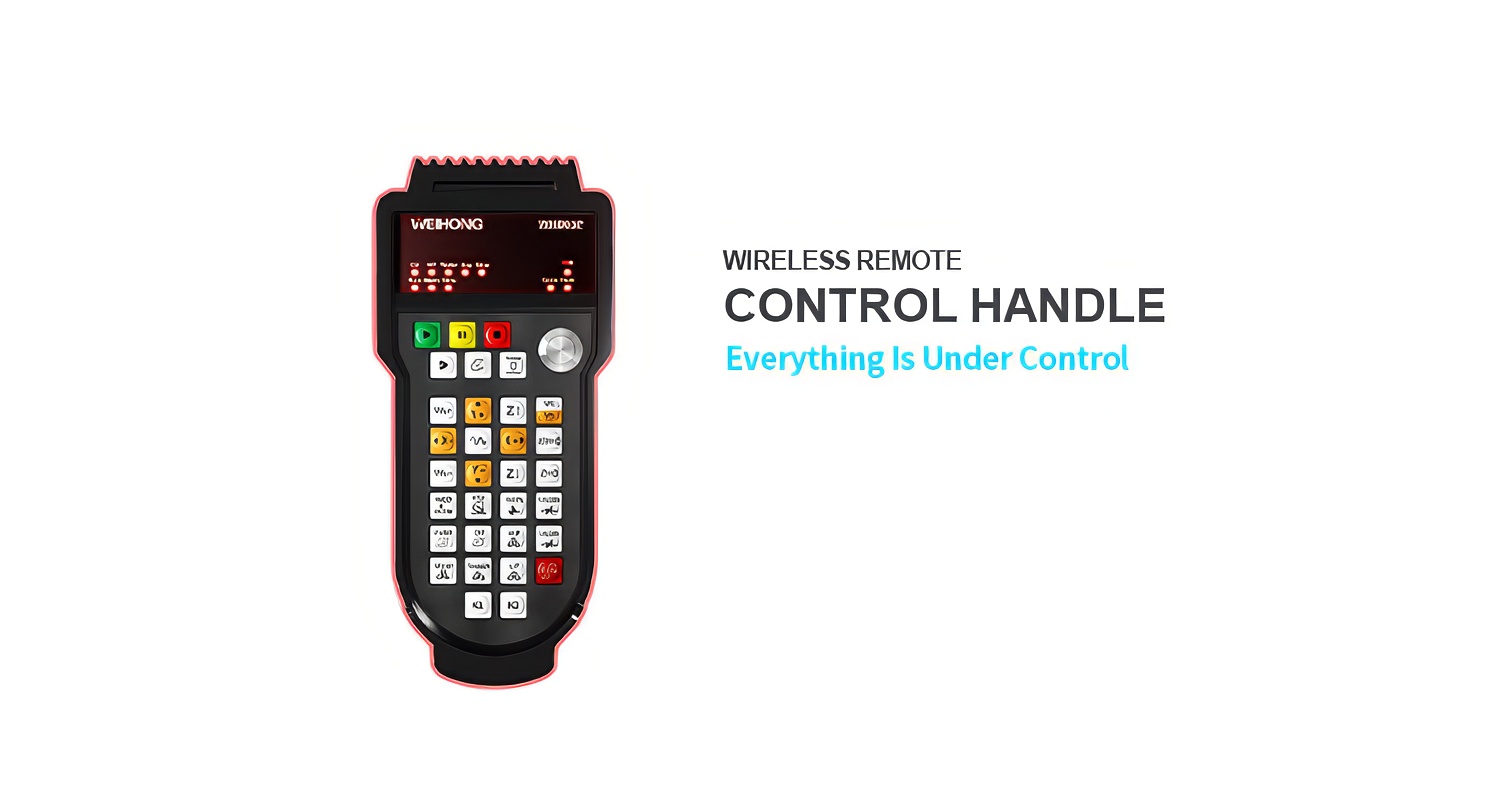

Control machine operation at any time
Magnetic suction design for easy access
Achieving exact tolerances across varying material profiles requires advanced mechanical articulation. This machine supports up to 60-degree 3D beveling, allowing for the direct creation of weld-ready chamfers on both flat sheets and tubular structures. The dynamic tilt compensation actively adjusts the cutting head angle to counteract the natural taper of the water stream.
Cutting Mode Transition | Fluid integration between flat sheet and rotary pipe processing |
Beveling Capability | Up to 60-degree 3D beveling for complex joint preparation |
Accuracy Margin | Strictly controlled within a 0.01mm error threshold |
Edge Quality | Smooth, burr-free finish requiring zero secondary grinding |
The visual result of this precision is immediately apparent: the freshly cut metal edges present a clean, uniform texture, completely devoid of the slag or thermal distortion typical of plasma or laser alternatives.
The versatility of processing both flat stock and tubing on a single platform provides distinct advantages across multiple demanding industrial sectors. By consolidating two distinct machining processes, facility managers can optimize floor space, streamline loading and unloading workflows, and minimize material handling times.
Heavy Industry & Construction: Capable of slicing through thick structural steel plates and large-diameter pipes used in crane manufacturing, bridge building, and earth-moving equipment, providing weld-ready bevels directly off the machine.
Food Processing Machinery: Delivers the sanitary, heat-free cuts required for stainless steel components, ensuring no metallurgical changes occur that could harbor bacteria or cause premature rusting in food-grade environments.
Medical Equipment Fabrication: Provides the extreme 0.01mm precision necessary for specialized medical device enclosures and structural supports, where dimensional accuracy is strictly regulated.
Customization Capabilities: Recognizing that production requirements vary wildly, the equipment supports tailored workbench dimensions, allowing buyers to specify the exact cutting envelope needed for their unique workpiece sizes, thereby maximizing their specific return on investment through uninterrupted, high-intensity continuous production.
No. The intelligent software and built-in rotation axis control allow operators to transition fluidly between flat sheet processing and rotary pipe profiling with minimal setup adjustments and no data switching.
Yes. The intelligent 3D cutting head supports both fixed and variable angle cutting up to 60 degrees. This provides direct creation of weld-ready chamfers on both flat and tubular structures.
The machine maintains a strict 0.01mm accuracy margin through a combination of a concrete-casted, shock-absorbing bed, a split-structure water tank, and an oil-immersed transmission system that protects moving parts from abrasive wear.
Yes. We offer customized workbench dimensions tailored to your exact cutting envelope requirements, ensuring you get the most suitable equipment for your bulk production needs.
