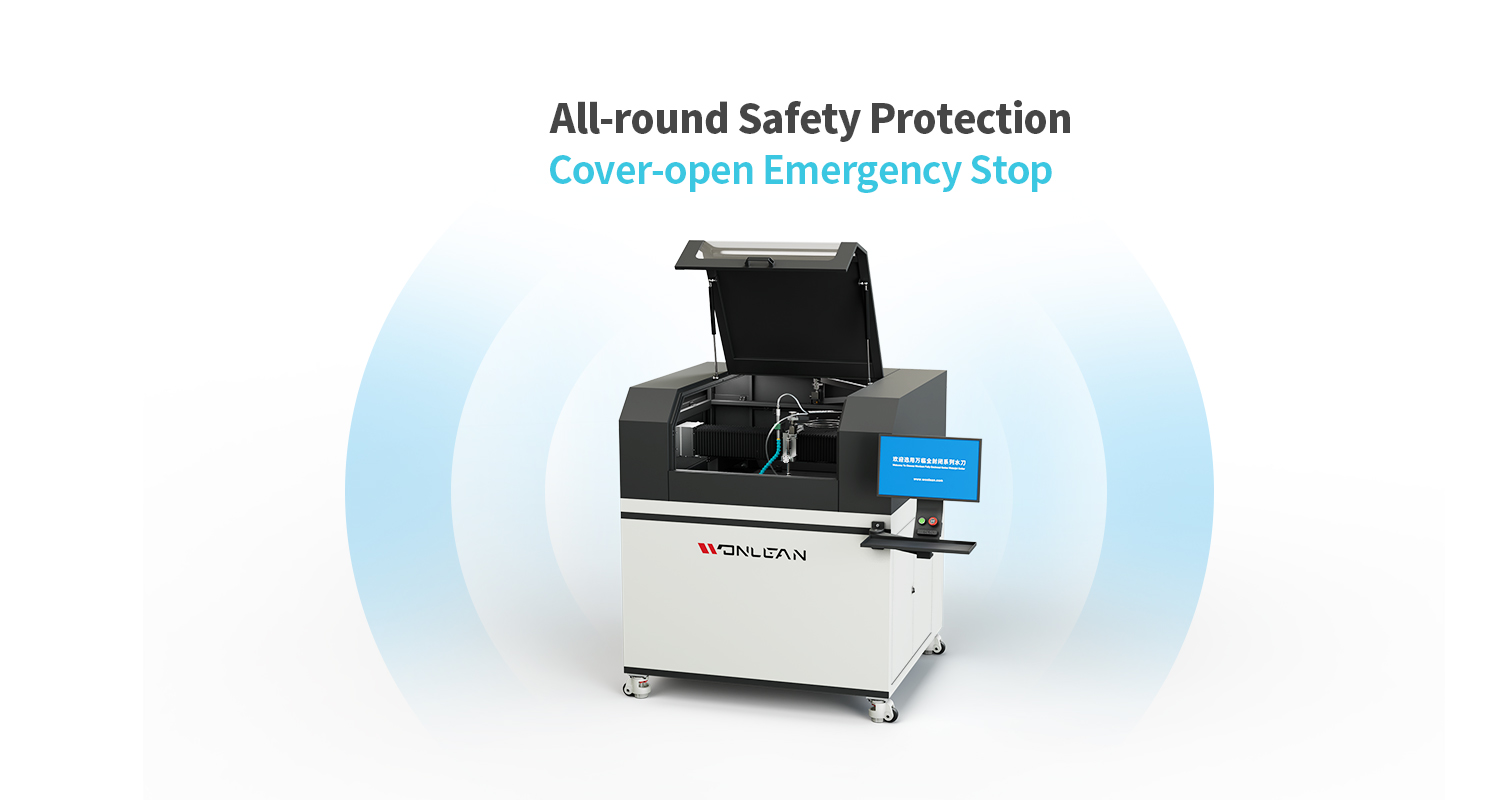

The fully enclosed hood can completely enclose the cutting operation area, which is safer. If you open the enclosed hood during cutting, the high pressure system will immediately stop to ensure your safety. Safety accompanies every cut.

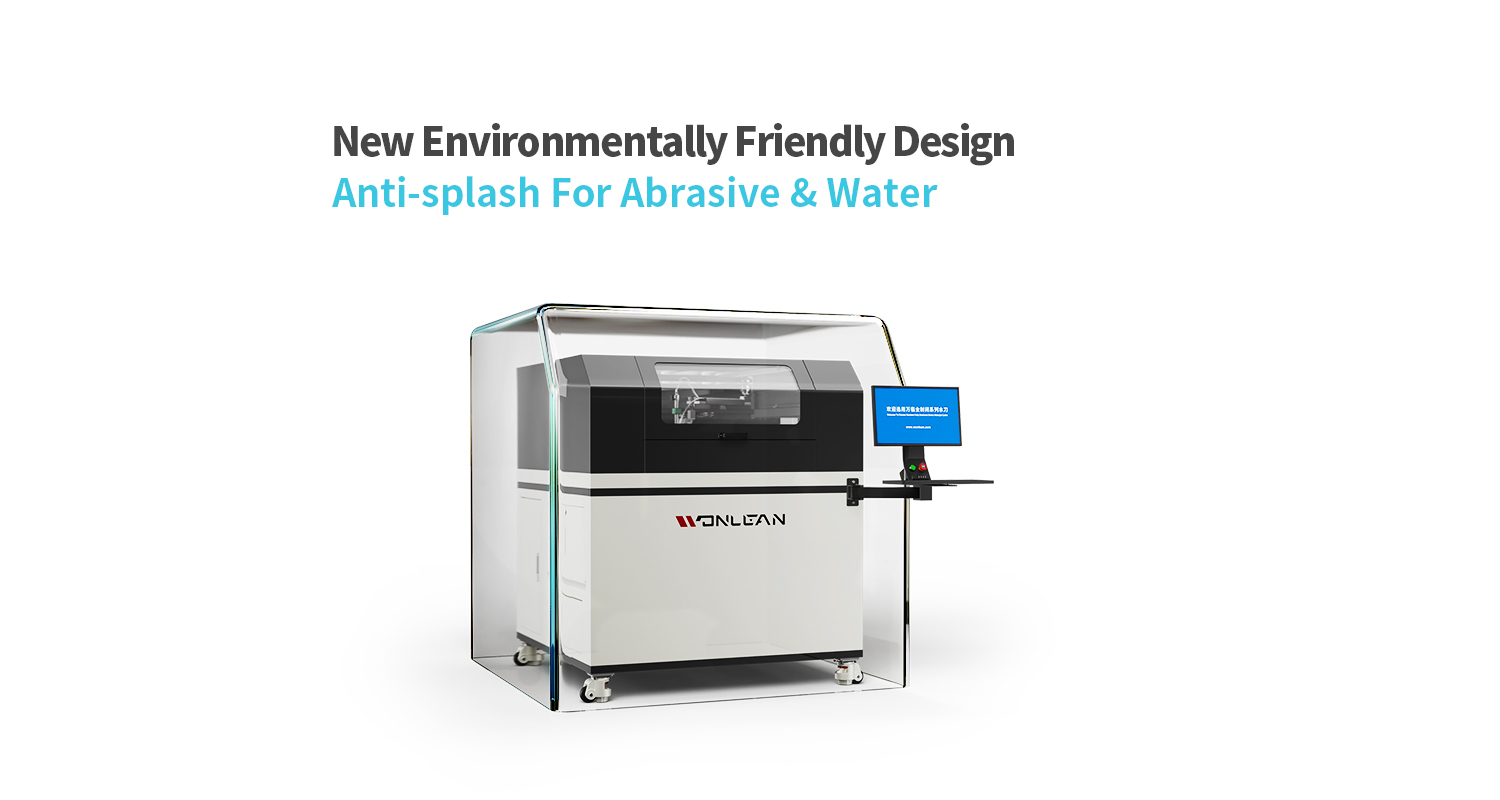

The waterjet cutting table adopts a fully enclosed hood to isolate the splashing of abrasive and water during cutting. It greatly reduces noise pollution and is more environmentally friendly.

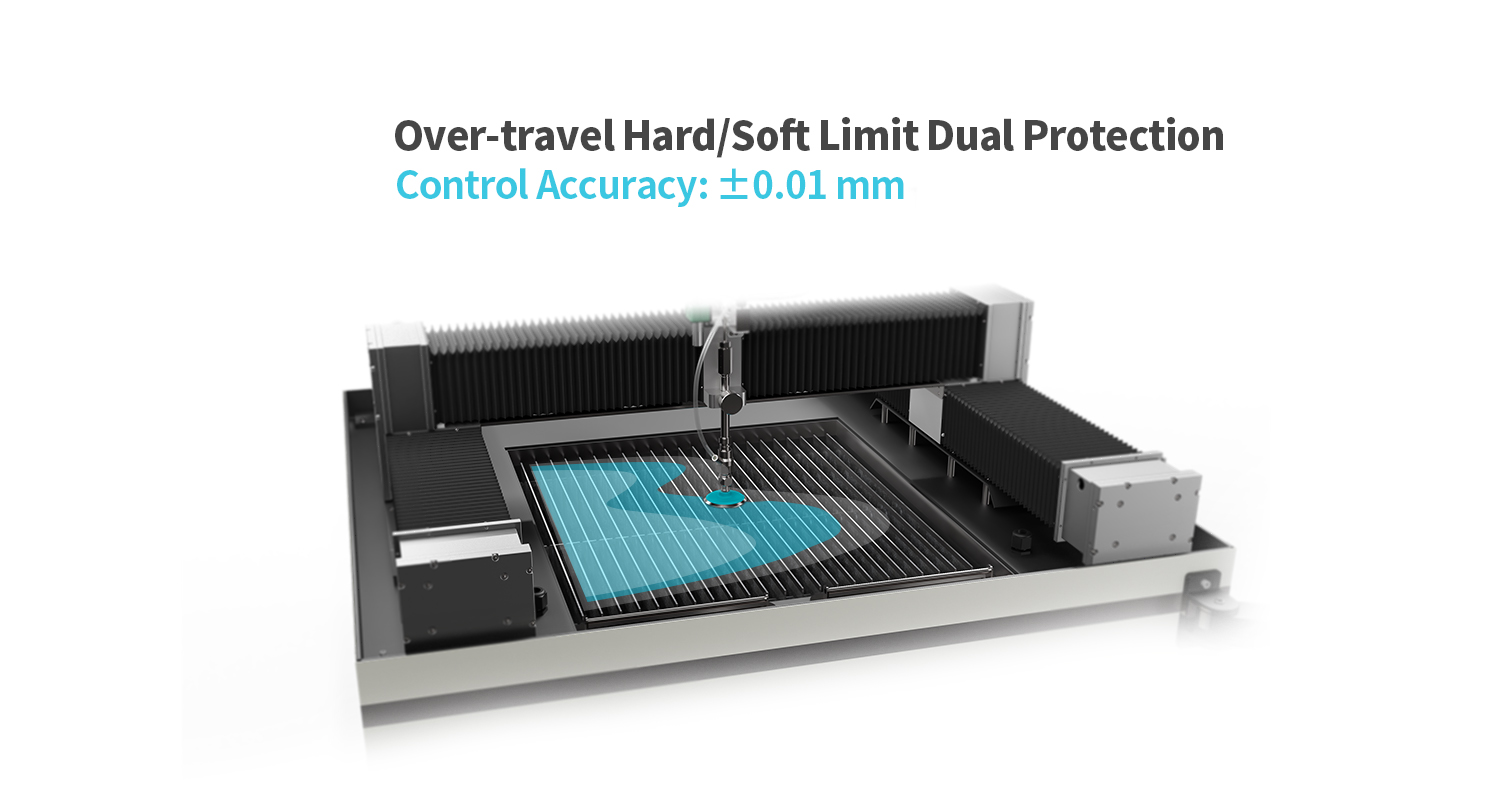

Adopts mechanical and software dual limit protection. Intelligent software pre-stop and physical mechanical braking eliminate over-travel faults, ensuring safe operation and stable cutting accuracy.
We can customize the waterjet cutting table according to the size of your workpiece, and only the most suitable one is the best.
Automatically identifies CAD electronic drawings and generates cutting path and access parameters, reducing manual coding and repetitive operations while simplifying operations and improving productivity.
Equipped with a variable oil pump and a intelligent variable high pressure system consisting of four imported valve bodies, our intelligent variable pressure system intelligently adjusts the oil volume based on pressure requirements, ensuring high cutting efficiency, better oil temperature control and more energy-saving.
| Model | 0303 | 0404 | 0604 | 0606 |
| Effective travel of X axis | 300mm | 400mm | 600mm | 600mm |
| Effective travel of Y axis | 300mm | 400mm | 400mm | 600mm |
| Effective travel of Z axis | 70mm | 70mm | 70mm | 70mm |
| Maximum pressure | 420MPa | 420MPa | 420MPa | 420MPa |
| Maximum water flow | 3.7L | 3.7L | 3.7L | 3.7L |
| Running speed | 3M/min | 3M/min | 3M/min | 3M/min |
| Movement accuracy | ±0.07mm | ±0.07mm | ±0.07mm | ±0.07mm |
| Positioning accuracy | ±0.07mm | ±0.07mm | ±0.07mm | ±0.07mm |
| Repeat positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Control accuracy | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |

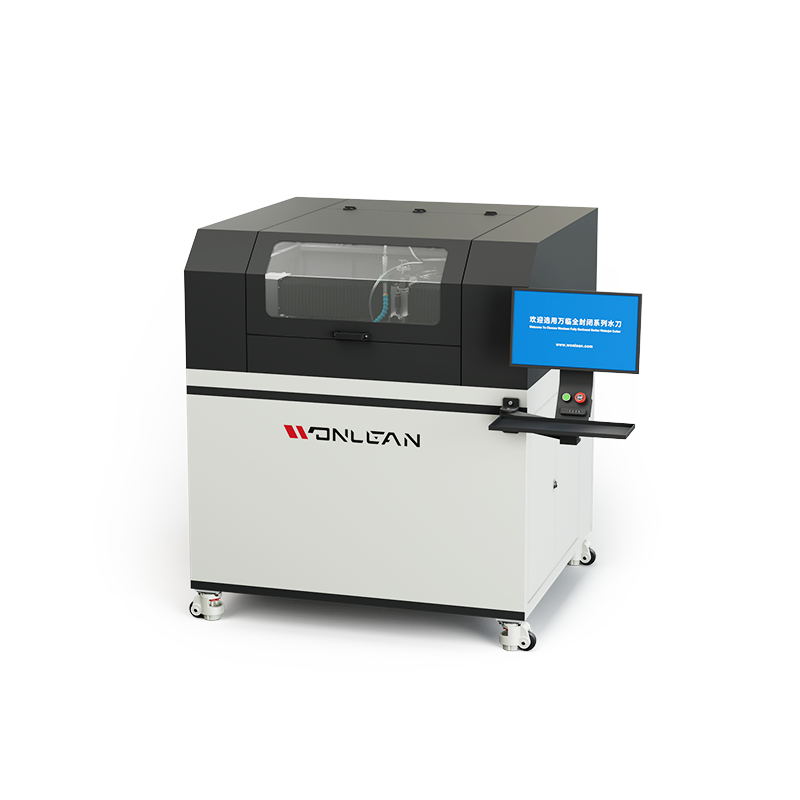

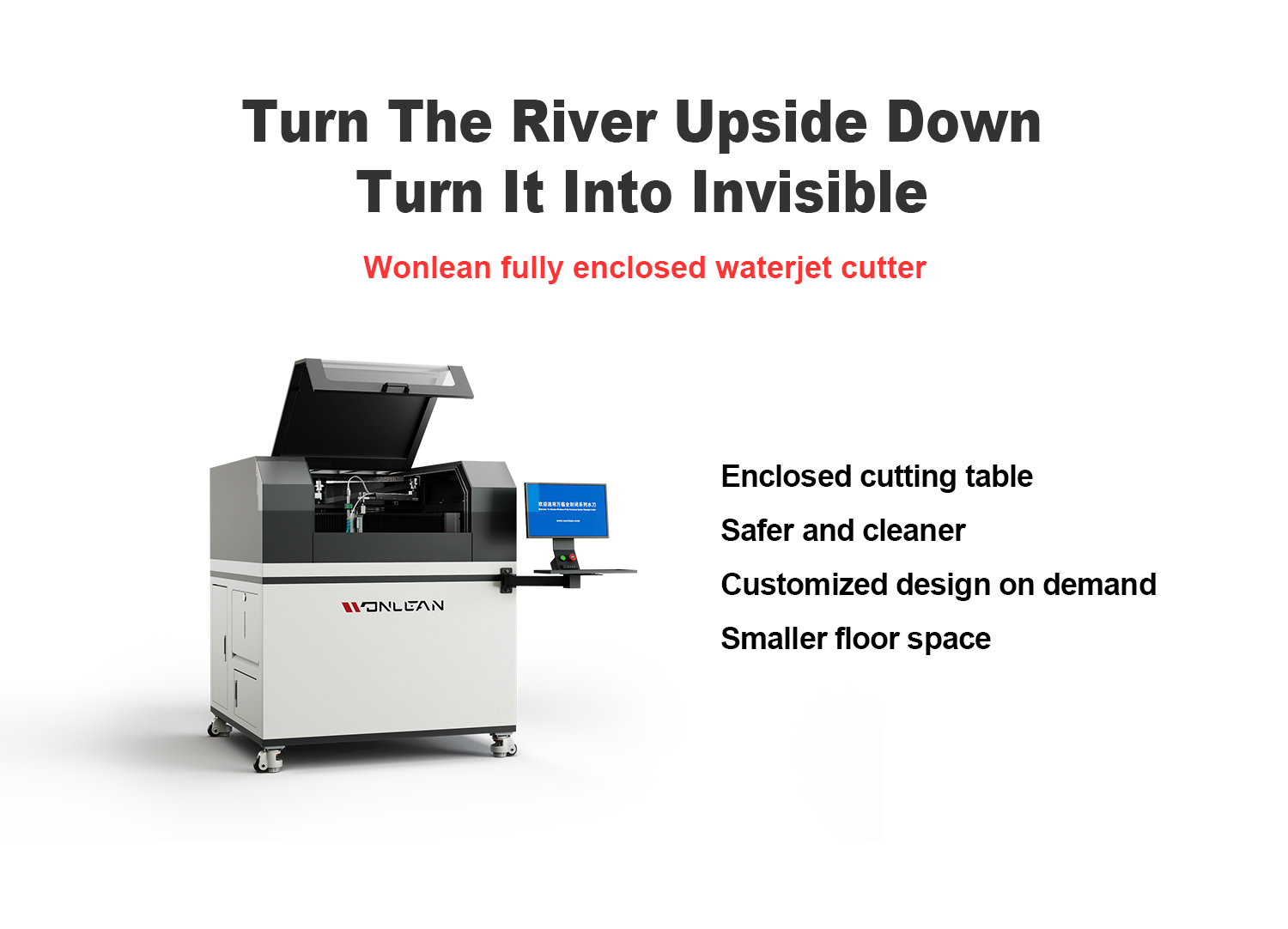

WONLEAN fully enclosed small Water Jet cutter is designed for small-format workpiece processing, suitable for precision component workshops, material testing laboratories, and small-scale production lines. The machine integrates a fully enclosed cutting table with a compact footprint, making it adaptable to workshops with limited floor space. As a cold cutting equipment, it does not produce thermal deformation on the workpiece surface, which is suitable for materials sensitive to high temperature. The enclosed hood covers the entire cutting operation area, supporting stable cutting under 420MPa pressure for various thin and medium-thickness materials.
The fully enclosed hood isolates the cutting operation area from the external working environment. The machine is equipped with a door-open emergency stop mechanism: if the enclosed hood is opened during the cutting process, the high-pressure system will stop operation immediately. For the axis movement system, the machine adopts dual over-travel protection, including mechanical hard limit and software soft limit. The combination of intelligent software pre-stop and physical mechanical braking reduces over-travel faults, with a control accuracy of ±0.01 mm.
The fully enclosed hood blocks the splashing of abrasive and water generated during the cutting process. This structure reduces the spread of cutting noise to the surrounding working area, and contains cutting waste within the table for centralized cleaning. This design reduces the spread of cutting byproducts in the workshop environment, and lowers the cleaning workload of the operation area.
The control system can automatically identify CAD electronic drawings, and generate corresponding cutting paths and operation parameters based on the drawing content. This function reduces manual coding work and repetitive operation steps, and simplifies the operation flow of the equipment. Operators can complete path generation without complex programming settings, which shortens the preparation time before production.
The machine is equipped with an intelligent variable high-pressure system, consisting of a variable oil pump and four imported valve bodies. The system adjusts oil volume according to real-time pressure requirements during cutting. This adjustment mechanism supports stable pressure output, and contributes to oil temperature control and energy consumption adjustment during long-time operation.
WONLEAN provides customization service for the cutting table size. Clients can put forward requirements based on the dimensions of their workpieces, and get a cutting table matching their actual processing needs. Four standard models are available for selection, covering most common small-size processing demands.
This small enclosed Water Jet cutter is applicable to processing various materials, including metal sheets, ceramics, glass, plastics, and composite materials. It is suitable for scenarios such as precision part processing, sample trial production, craft product cutting, and electronic component processing. The enclosed structure makes it suitable for workshops with high requirements for on-site cleanliness and noise control.
The overall dimension of the 0606 model includes a length of 1700mm, a width of 1250mm, and a height of 1340mm. For specific installation space requirements, you can contact our team for detailed layout guidance.
Yes, the cutting table can be customized according to the size of your workpieces. You can provide your workpiece dimension requirements, and we will provide corresponding configuration solutions.
All standard models of this series support a maximum pressure of 420MPa, which can meet the cutting needs of most conventional materials.
Yes, the control system supports automatic identification of CAD electronic drawings, and can generate cutting paths directly based on imported files.
