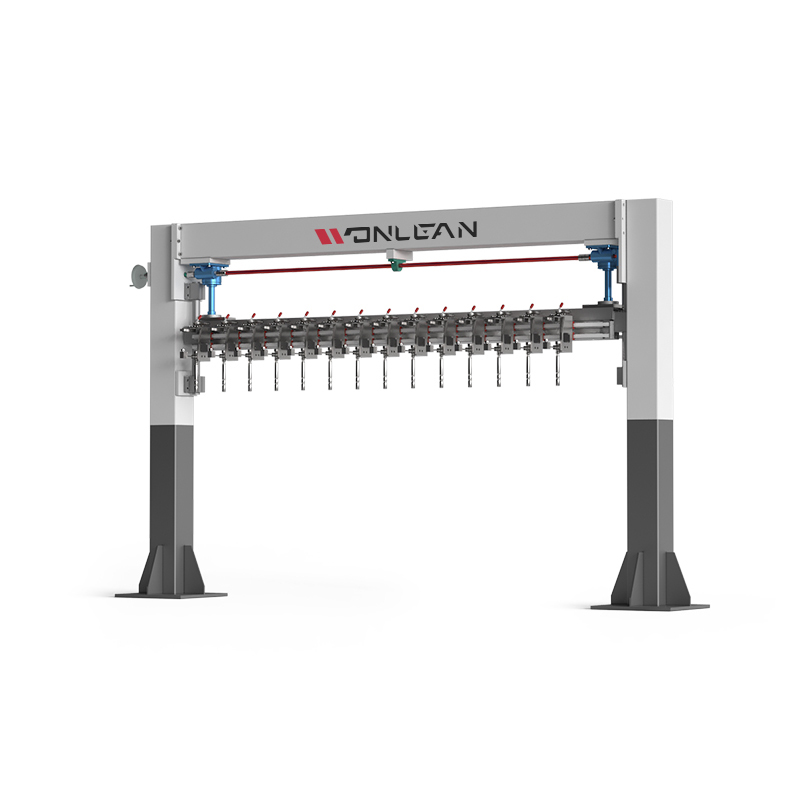

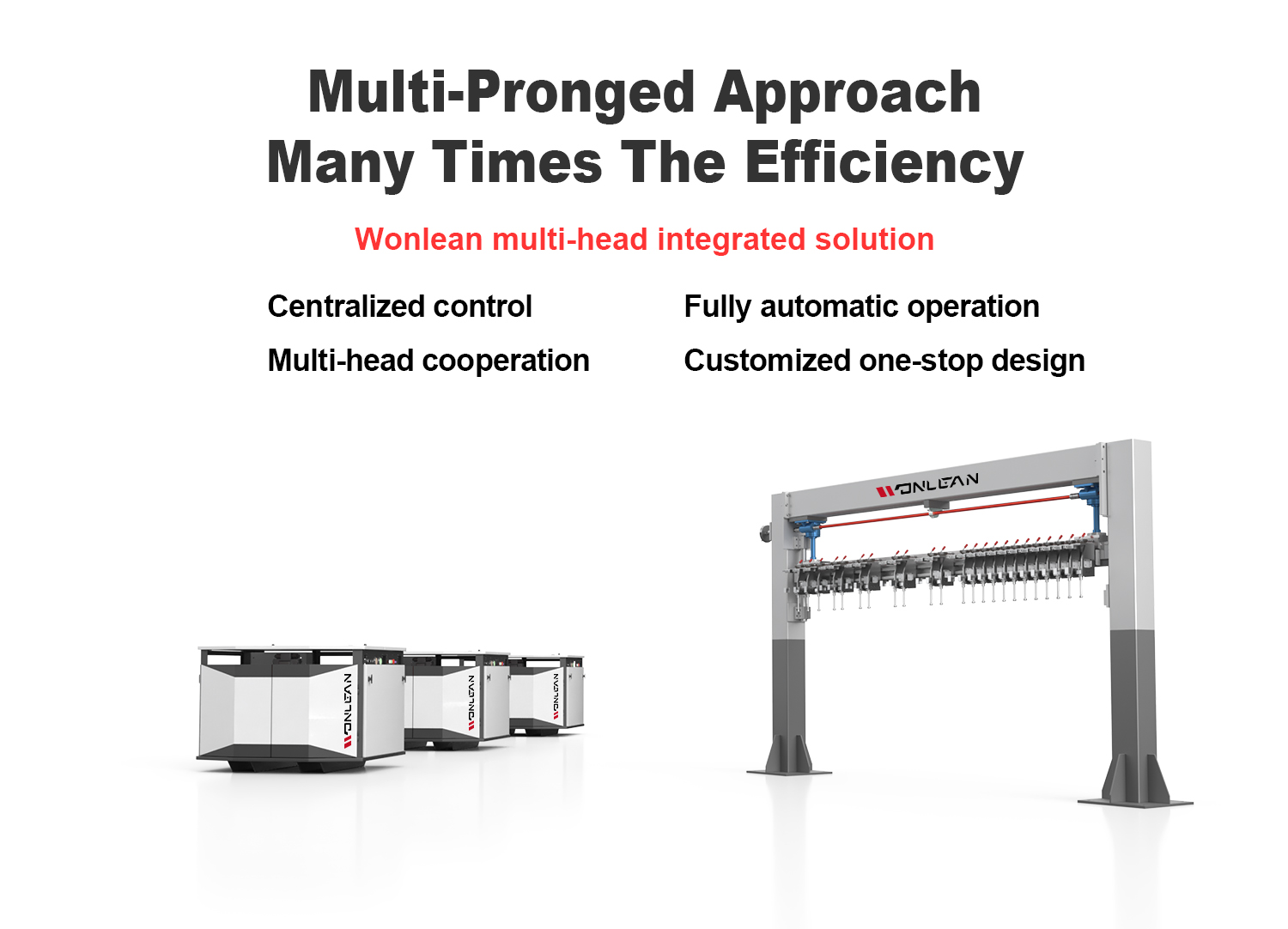

The multi-head cutting plan can be customized to the cutting requirements, allowing for multiple cutting tasks to be completed in one pass and greatly improving the cutting efficiency.

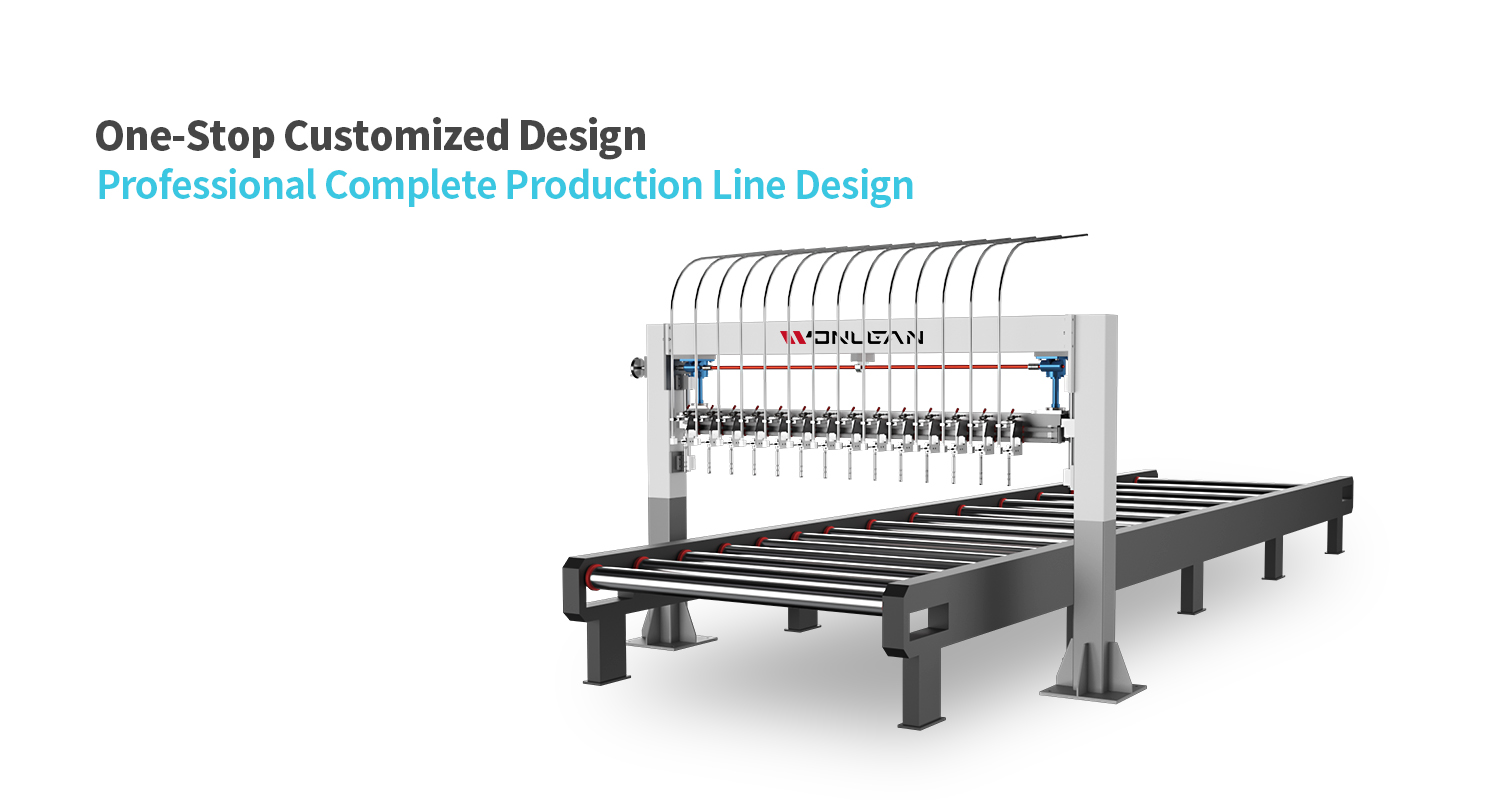

Whether it is from material loading and unloading, movement, cutting operations or from the design of the entire production line, we have very rich experience and can provide you with professional design solutions，eliminating the risk and trouble of different manufacturers in each link and making it more reliable.

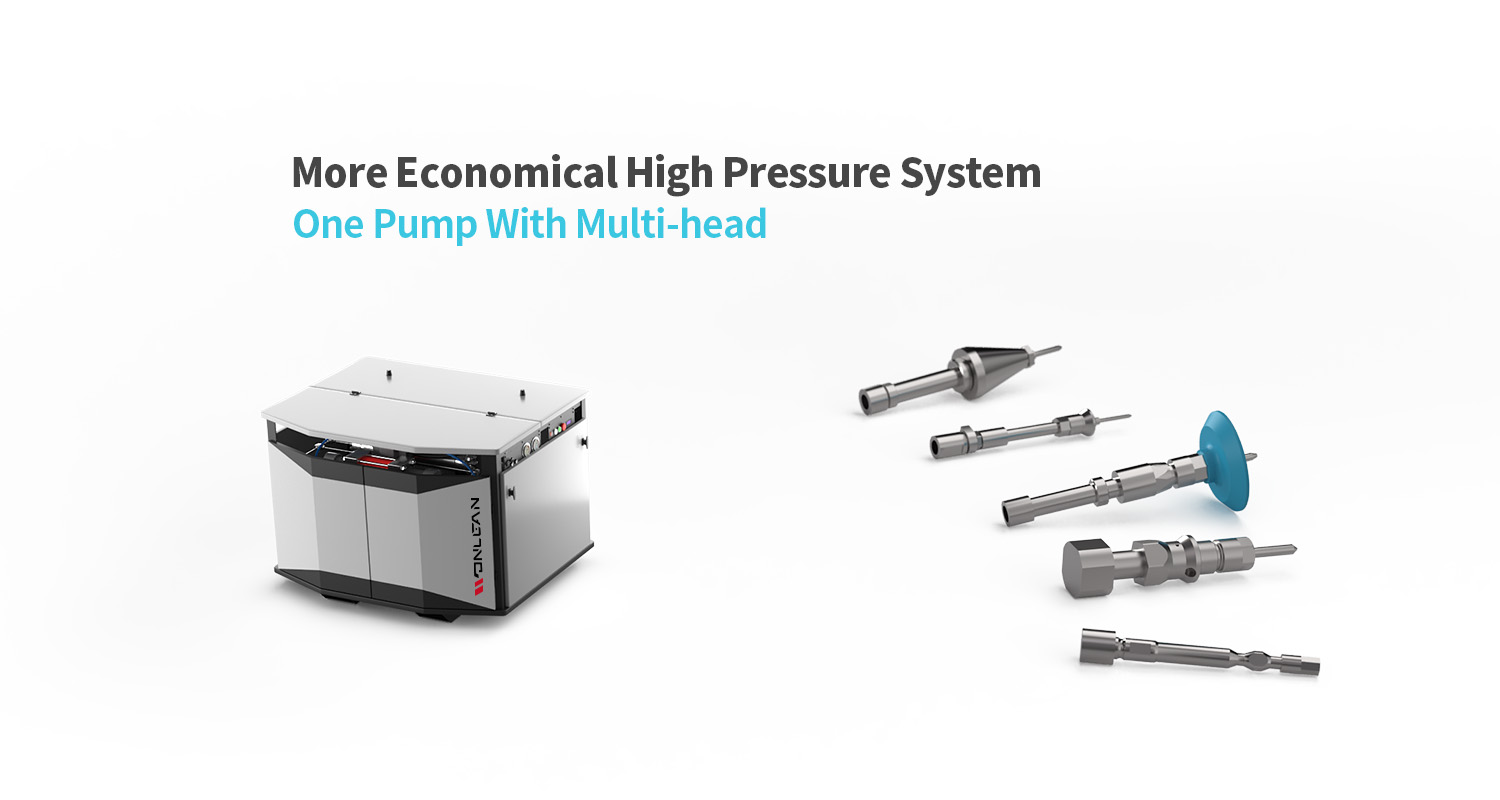

We will design the most suitable orifice diameter and required flow rate according to the cutting material, and realize the supply scheme of one pump with multi-head. It solves the previous supply mode of one pump with one cutting head, with less investment and more energy saving.

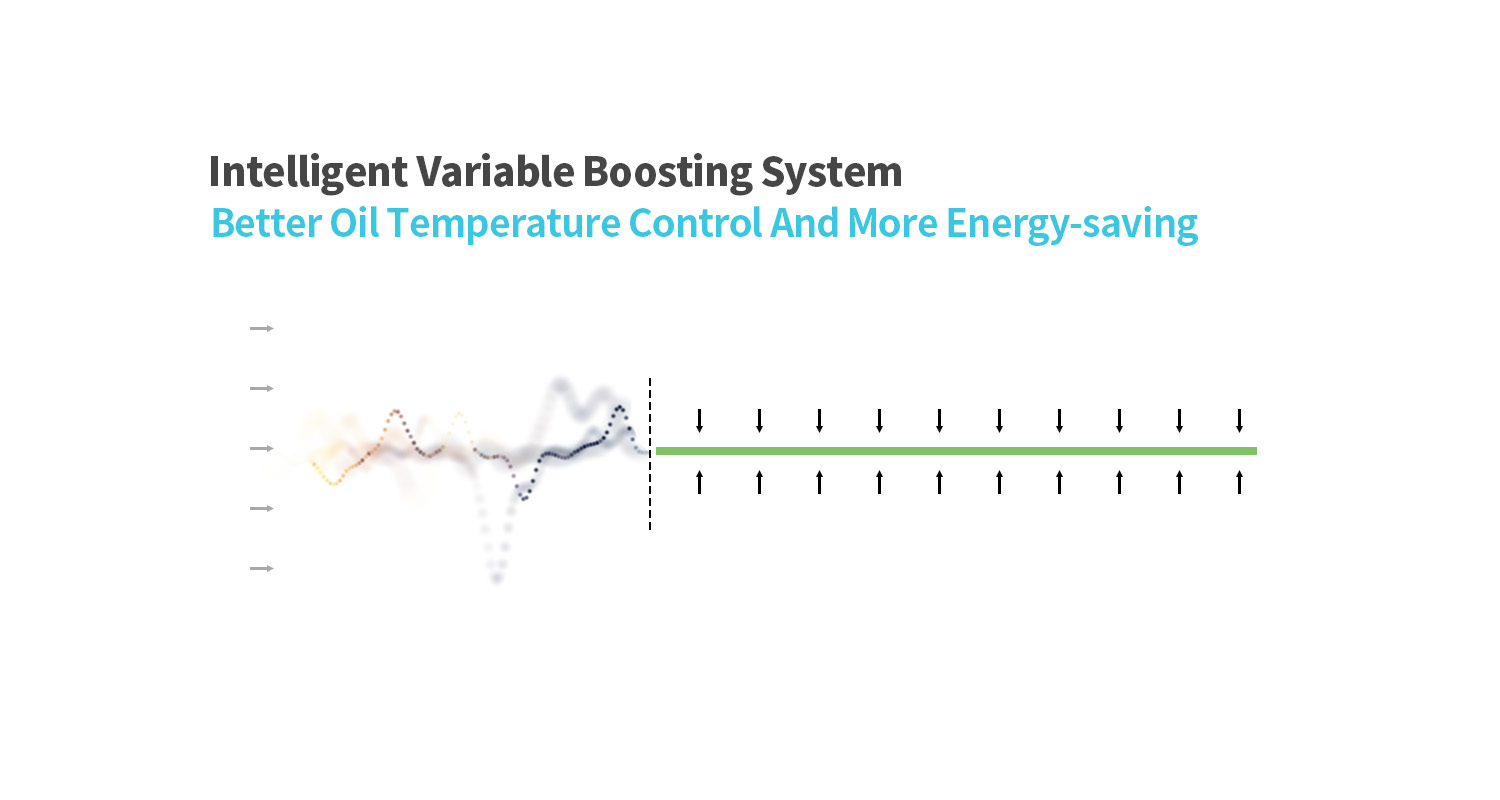

Equipped with a variable oil pump and a intelligent variable high pressure system consisting of four imported valve bodies, our intelligent variable pressure system intelligently adjusts the oil volume based on pressure requirements, ensuring high cutting efficiency, better oil temperature control and more energy-saving.
International top quality accomplishes the Wonlean classic.
The multi-head Water Jet cutting machine is an industrial cutting system designed for batch processing and mass production scenarios. Developed by WONLEAN, this system supports customizable multi-head cutting configurations, allowing multiple cutting tasks to be completed in a single pass. It also provides one-stop production line design services, covering material handling, cutting operations and full line layout. With a single-pump multi-head supply design and intelligent pressure control system, it targets efficiency improvement and energy consumption optimization for commercial procurement users in the manufacturing sector.

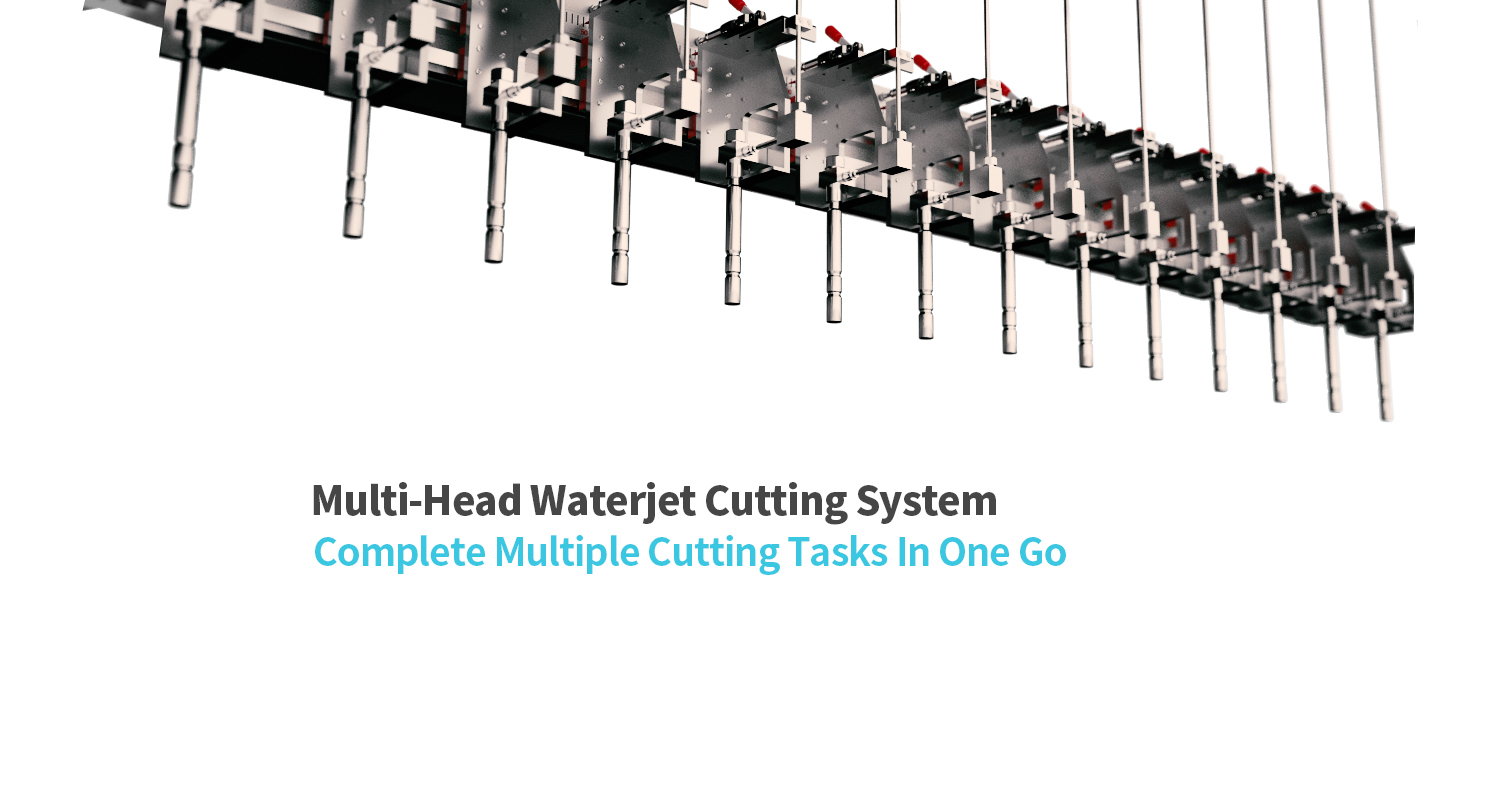

The multi-head cutting solution can be customized according to specific cutting requirements, with adjustable number of cutting heads to match different production capacities. Multiple cutting heads work synchronously to complete several cutting tasks in one pass of the gantry, which improves processing efficiency for batch workpiece production. The system adopts centralized control to coordinate all cutting heads, ensuring consistent cutting trajectories and dimensional accuracy across different workstations.
WONLEAN provides integrated design solutions for the entire cutting production line, covering processes from material loading and unloading, workpiece transfer to formal cutting operations. The design team develops solutions based on the user’s workshop layout, production capacity requirements and material characteristics. This one-stop service eliminates the coordination work between multiple suppliers for different production links, and reduces the matching risk of equipment from different manufacturers.
The system adopts a single-pump multi-head water supply scheme, replacing the traditional one-pump one-head supply mode. The design team calculates and selects the appropriate nozzle orifice diameter and required flow rate according to the cutting material and processing requirements, so that one high-pressure pump can supply multiple cutting heads simultaneously. This configuration reduces initial equipment investment and lowers overall energy consumption per unit of output.
The Water Jet system is equipped with an intelligent variable high pressure system, consisting of a variable oil pump and four imported valve bodies. The system intelligently adjusts oil volume according to real-time pressure requirements during operation. This pressure regulation mode helps maintain stable cutting output, supports better oil temperature control during long-term operation, and reduces unnecessary energy consumption under low-load working conditions.
The main components of the multi-head Water Jet cutting machine are sourced from internationally recognized industrial brands. The configuration includes components from YASKAWA, OMRON, HIWIN, Rexroth, Schneider, AccuStream, WEIHONG, YUKEN, Hypertherm, SIEMENS, KMT and AirTAC. The use of mature industrial components supports stable long-term operation and facilitates subsequent maintenance and parts replacement for commercial users.
Category | Details |
|---|---|
Cutting head configuration | Customizable multi-head synchronous cutting |
High pressure supply mode | Single pump with multiple cutting heads |
Boosting system | Intelligent variable pressure system with variable oil pump and 4 imported valve bodies |
Control mode | Centralized control, fully automatic operation |
Customization service | Full production line design covering loading, transfer and cutting |
Core component brands | YASKAWA, OMRON, HIWIN, Rexroth, Schneider, AccuStream, WEIHONG, YUKEN, Hypertherm, SIEMENS, KMT, AirTAC |
This multi-head Water Jet cutting system fits various industrial applications that require mass cutting production. It is widely used in batch blanking of metal sheets, profile cutting in the sheet metal processing industry, and shaped cutting of stone and ceramic materials. It also applies to glass product processing, rubber and composite material cutting, and mass production of industrial structural parts. For manufacturing workshops with continuous batch processing demands, the system provides a scalable cutting solution that can be adjusted with production capacity changes.
The number of cutting heads is customizable based on the user’s specific cutting requirements, production capacity and high-pressure pump configuration. The solution will be designed according to actual processing materials and output demands.
Compared with the traditional one-pump one-head mode, the single-pump multi-head design reduces the initial investment of high-pressure power units. It also lowers the total energy consumption under the same production capacity, and reduces the floor space of the power system.
Yes. We provide one-stop production line design services, covering material loading and unloading, workpiece transfer, cutting operations and overall workshop layout. The solution will be customized according to the user’s on-site conditions and production needs.
The multi-head Water Jet system can process most non-sparking materials, including metals, stone, ceramic, glass, rubber and most composite materials. The specific cutting capacity will be confirmed according to material thickness and processing requirements.
